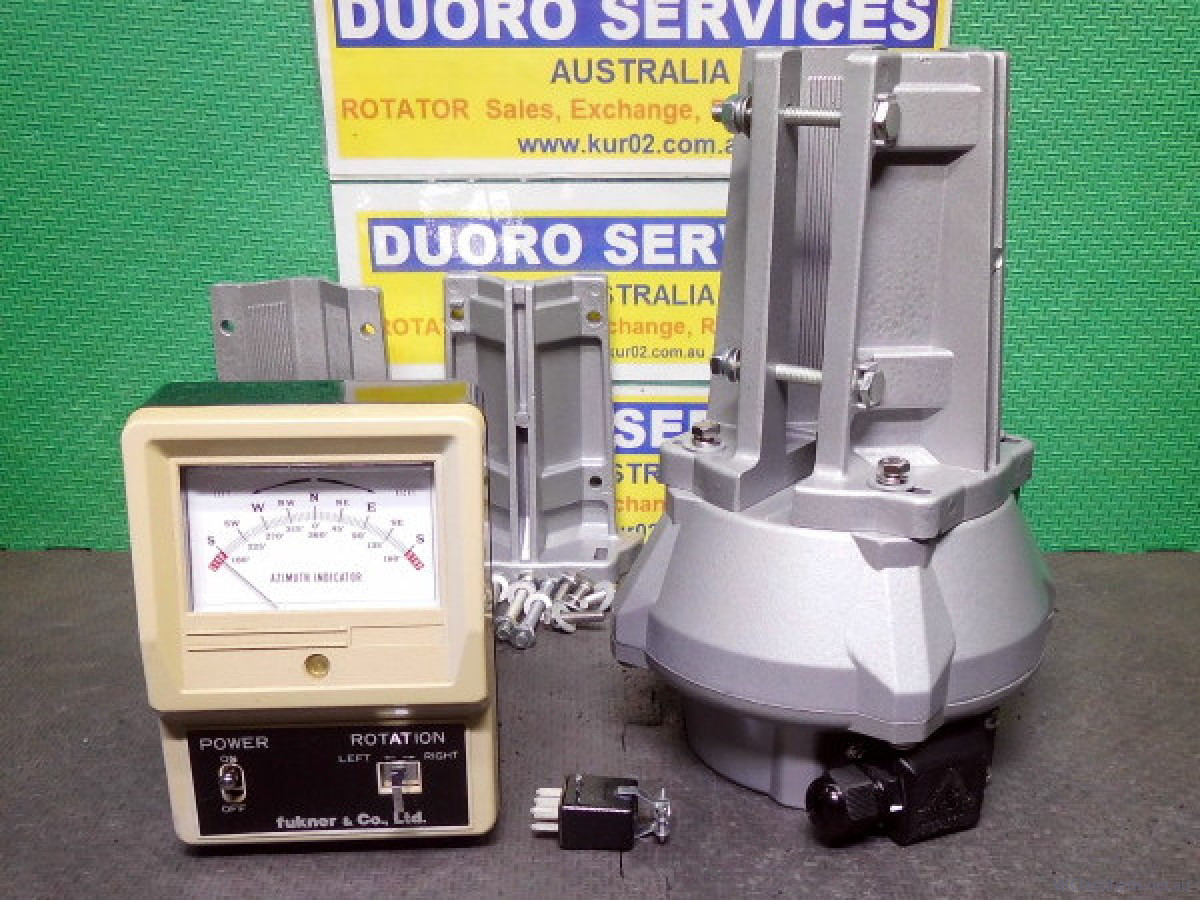

FUKNER COMMANDER FU400 ROTATOR SET

Rotator Set with Panel Metered Controller & Rotator with top & bottom mast clamps, hardware, plug for control cable & revised manual.

Wind Area .............. 0.50m Sq.

Rotation Torque .....5.5 Kg/m

Brake Torque ......... 15.0 Kg/m

Mast Size ............... 38~50mm

Rotation Time ........ 60 second 360 degree

Control Cable .........6 core

Rotator Voltage ......24vAC.

The Panel metered Controller :- Upgraded with new PCB, Output & IEC sockets.

This controller has panel meter direction display & a single 2 way paddle style direction switch.

Completely strip down, the steel chassis was cleaned then upgraded for the IEC & output sockets + welding the corners of the rear panel, it was then, Re-zinc plated.

The outer housing was cut out to suit the chassis upgrades.

Features:- New DS-3P PCB with adjustable display illumination output for the LED strip light, New Fused IEC socket & a 6 pin Cinch socket mounted on a new S/S mounting plate, Calibration POT.

Supplied with new 6 pin Cinch plug for the control cable, IEC power lead & revised manual.

The FU-400 Rotator :- Has a friction brake on the motor, has been fully refurbished & upgraded.

New parts are:- Limit micro switches, Motor start CAP & bracket, Bearings, Wiring, Terminal board with 6 pin plug/socket & 6 way screw in terminal block, 3D printed (PETG) Terminal Cover with proper cable gland.

The motor start CAP is now in the rotator & end of rotation limit switches have been installed fully re-wired to the new terminal board.

Installed new ball bearings & reassembled with new grease through out.

Aligned & Calibrated with the controller.

Includes Top & Bottom Mast Clamps & S/S Mounting/Clamping Hardware.

240vAC.  24 month warranty.

This unit is available for exchange. See details on my web site.
Contact Peter of Duoro Services via the email service provided by VK Classifieds
