SMB65ss series Side Mount Brackets for rotators

$ 275.00
Posted
Feb 22, 2024
Description

SIDE MOUNT BRACKETS:-
SMB65ssB is for the mast thrust bearings & SMB65ssR is for the  rotator.

SOLD INDIVIDUALLY, PRICE IS FOR ONE BRACKET ONLY.
A minimum of 2 brackets are needed.

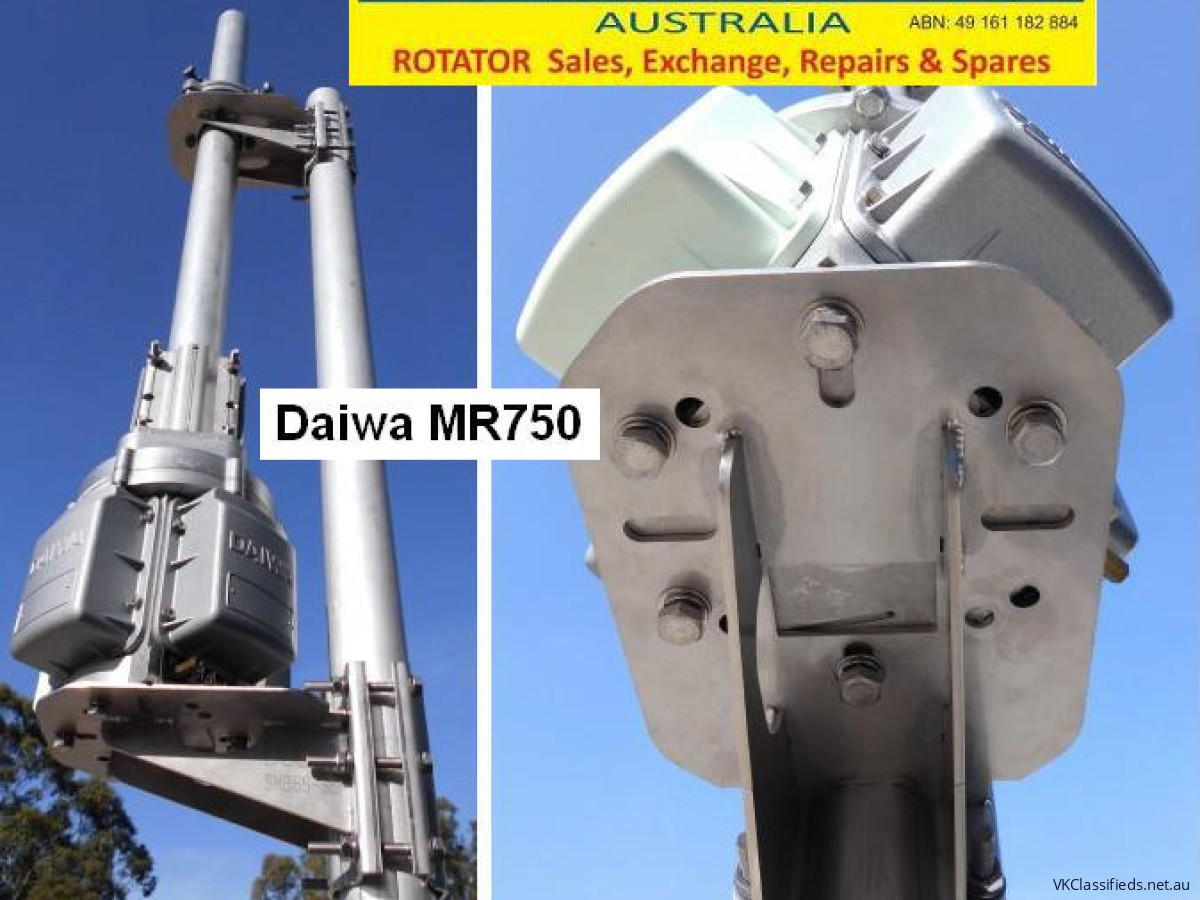

SIDE MOUNT BRACKETS, SMB65ssR is for the  rotator & SMB65ssB is for mast thrust bearing.

Support mast, clamping sizes:-

50 to 68mm diameter round tube, RECOMMENEND 60~68mm dia.

65 to 68 mm SQUARE tube, (Using optional longer bolts).

NEW:- OPTIONAL Locator Plate & Backing Clamp for LIGHT DUTY SETUP using 50 x 50mm Square or 50 x 75mm Rectangle SUPPORT MAST.
Locator Plate & Backing Clamp, add -LC50sq to above part number (POA).

Can also be attached to a flat surface 100mm plus width, (using screws or bolts).

Each bracket is made from 3mm Stainless Steel, Laser cut, computer folded & welded by MICRO Manufacturing in Australia.

Supplied with backing plate & 6 x 65mm M8 S/S hex set screws, nuts & washers.

Has provision for four (4) support mast locking screws or bolts

A minimum of two brackets (1x SMB65ssB & 1x SMB65ssR) are needed, for added rotator protection a second SMB65ssB can be used.

A minimum of two brackets (1x SMB65ssB & 1x SMB65ssR) are needed, for added rotator protection a second SMB65ssB can be used.

SOLD indivadually, Price is for one bracket only.


SMB65ssB is for the large Mast Thrush Bearings from Create (CK46) & Yaesu (GS-65) for pipe mast size 50 to 65mm dia.
1 IN STOCK

MAST BEARING NOT INCLUDED.

Weight 1.82kg


SMB65ssR is for most ROTATORS with a 4 or 6 bolt mounting pattern:-
1 IN STOCK

FOR ROTATORS from:-
CREATE:-
RC5 series RC5-1, RC5-1DC, RC5-3/P, RC5A-2, RC5A-3/P, RC5B-3/P RC5B-4P etc.

DAIWA:-  DR-7500, DR-7600, MR-750, MR-300 & MR-400.

EMOTATOR:-  102, 103, 105, 501, 502, 747, 750, 1100,1102/3, 1105, 1200 & 1300 etc.

FUKNER FU-400, ALINCO EMR400, DIAMOND 400 & other similar small rotators.


Hy-Gain, CDE etc:- AR-22~40, TR-44, CD-44, CD-45, Ham-M, Ham-2, Ham-3, Ham-4 & Ham-5 + T2X.

KENPRO:-  KR-400, KR-450XL, KR-600, KR-650, KR-800, KR-1000, KR-2000, KR-2300, KR-2500, KR-2700 & HR-1300 etc.

PST:-  641 & 2051.

YAESU:- G-400,G-450, G-600, G-650, G-800, G-1000, G-2000, G-2300, G-2500, G-2700 & G-2800 etc.
Weight 1.86kg.

Contact Peter of DUORO SERVICES via the VK Classified email service

Accessories Included
Manuals
Payments Options
  • Paypal
  • Direct Deposit
  • Cheque
  • Cash
Condition of Item - Commercial
New
Postage - Freight
Buyer Pays
