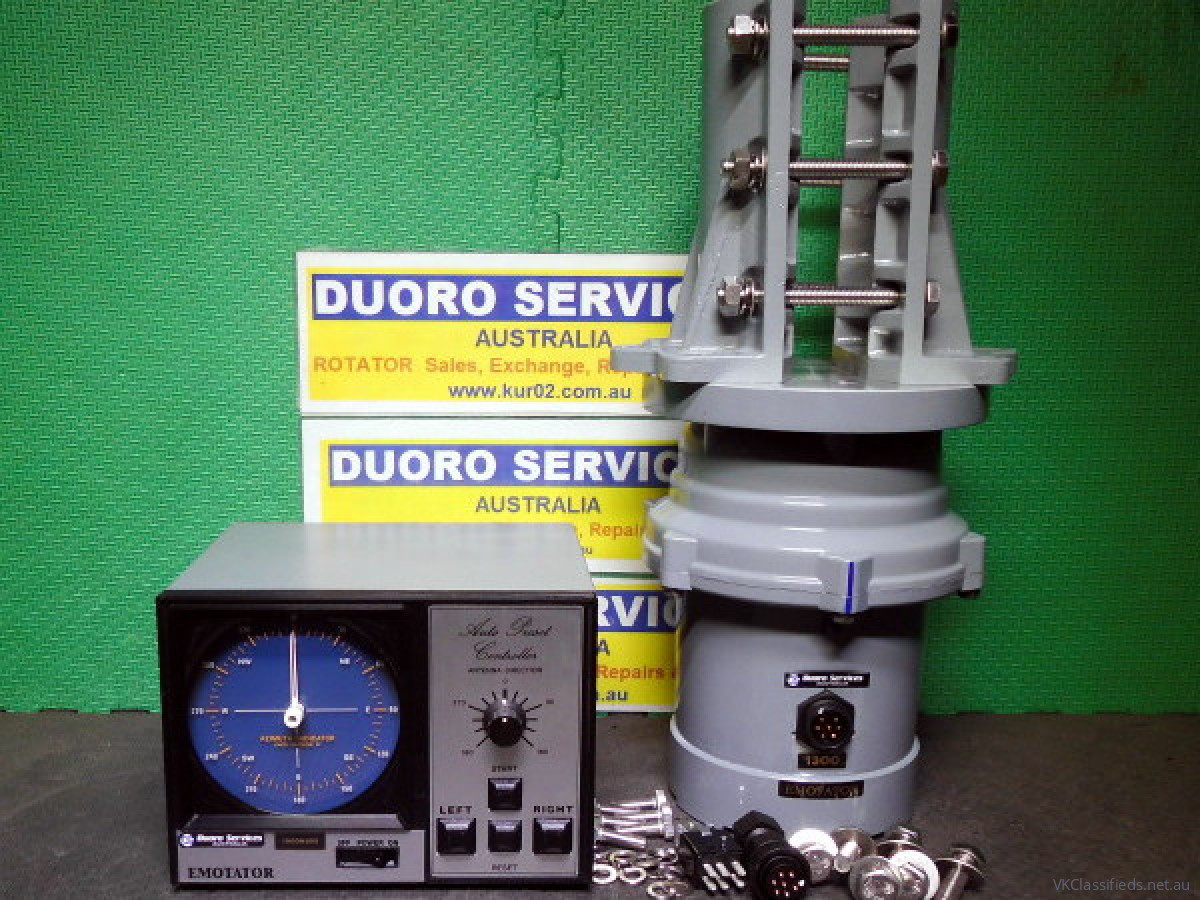

EMOTATOR 1300 MSDX Rotator Set

1300 Rotator with MSDX Dial Preset Full Circle Display Controller.

Includes Top Mast Clamp, Plugs For Control Cable + revised manual .

Wind Area ................3.0m Sq.

Rotation Torque ..... 30.0 Kg/m

Brake Torque ......... 250 Kg/m

Mast Size ................ 48 ~ 63mm

Rotation Time ........ 90 second 360 degree

Control Cable...........6 core

Rotator Voltage ..... 100vAC

Rotator Weight........9.0Kg including mast clamp.

 The MSDX Controller: - Full circle display, Dial Pre-Set + Push button direction switches with remote control output.

Fully disassembled, cleaned & prepared chassis for upgrades & new parts.

All new 3D printed front panel & buttons, also new decals, upgraded direction display assembly with new & improved compass display lens & needle.

The back panel: - Installed new fused IEC 240v socket, 6 pin Cinch socket with S/S cover plate + remote DIN socket & earth bolt, Chassis & rear cover were re-zinc plated.

On the inside: - Upgraded display illumination with my yLED-ac LED PCB. Upgraded wiring & terminal plugs etc, installed larger RF chokes. Refurbished the POT.  Re-assembled, fully tested & aligned with the 1300 rotator.

 The 1300 Rotator: - Has twin final drive gears onto the housing. The braking system is by way of the BK spring-drum assembly mounted on the top of the motor

Disassembled to the last nut, bolt & screw, then cleaned & check all parts for damage.

Install new billet lower housing end cap (DS-14HEC) which has M8 RECOIL thread inserts in the mounting holes. Also installed New billet 20mm thick x 180mm Dia mast clamp adaptor plate (MC1219AP) to the top housing.

All the housings & mast brackets were Glass Bead Blasted by IMPACT GLASS BEAD follow by etch primer & finished off in pewter gloss epoxy paint.

The limit switches were replaced & the POT was refurbished, Affixed the two 12mm gear shafts into the new 3mm lower gear plate.

The gears were aligned & shimmed then fully re-assembled into the refurbished housings with the new bearings & new grease throughout.

Re-aligned & calibrated with the controller.

240v AC. 24 month warranty.

This unit was available for exchange, see details on my web site.
Please contact Peter of DUORO Services via VK's email service or via my web site using the links on this site.
