AUD 1,850.00
Quantity Available
1
Posted
7 months ago
Description
Pending payment, thank you for all the enquiries, cheers Brenton vk3cm

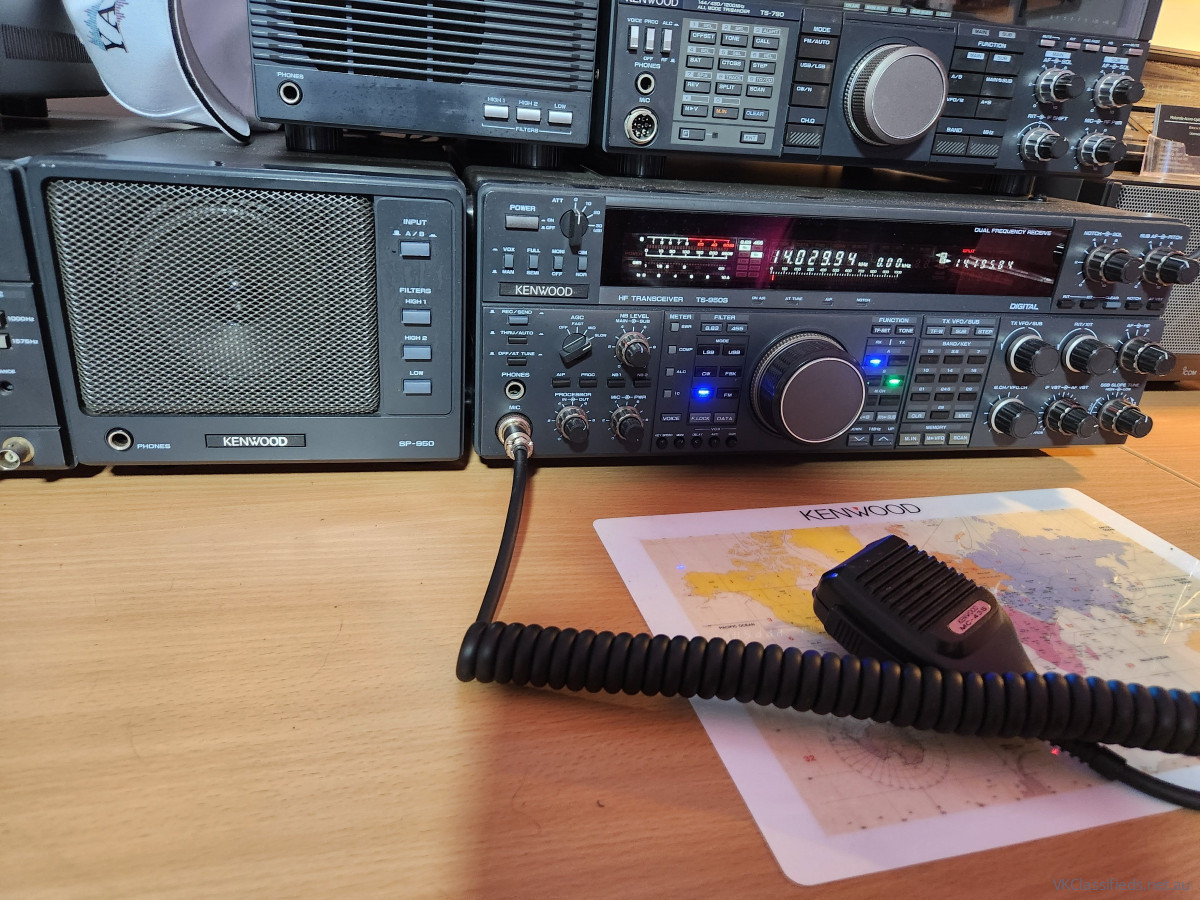

Kenwood TS950 with beautiful matching unmarked SP950 speaker. Unit has had the ultimate upgrades done by VK2CZ, just so much restored, too much to list. See even the incredible light upgrades, just love Davids work but I'm out of room in my personal shack, so someone gets probably the most restored reliable Kenwood TS950 on the planet.
I certainly wont cry if this one doesn't sell but it is so good, it needs to be used.
$1850 plus shipping or pick up and test welcomed.
Email brenton@posnav.com.au
Cheers Brenton vk3cm
Type: Amateur HF transceiver
Frequency range: TX: 10-160 m + WARC
RX: 0.1-30 MHz
Tuning steps: AM/FM: 100 Hz
SSB/CW/FSK: 10 Hz
Frequency stability: ±10 ppm @ -10 to +50°C (14 to 122°F)
Mode: AM / FM / SSB / CW / FSK
Channels / memory management: 100 regular
RAM storage with lithium battery backup
Repeater shift / offset: No dedicated. Use VFO A/B split instead
Offset trace function
Power supply: Mains: 120 / 220 / 230 / 240 VAC ±10% (Fixed power cord)
(Voltage varies depending on market)
Current drain / power consumption: RX: 110 W (No signal)
TX: Max 700 W
Antenna impedance / connector: 50 ohm / SO-239 (RX/TX)
50 ohm / Phono (RCA), for RX only
Dimensions (W*H*D): 409*154*446 mm (16.1*6.06*17.56")
Weight: 23 Kg (50.71 lb)
Other features: CTCSS/PL encoder. 1750 Hz repeater tone. Built-in Auto-ATU and keyer.
500 KHz marker. DSP option (DSP-10).
RECEIVER SECTION
Receiver system: Main RX: Triple conversion superheterodyne (FM)
1st IF: 73.05 MHz
2nd IF: 8.83 MHz
3rd IF: 455 KHz
Main RX: Quadruple conversion superheterodyne (AM/SSB/CW/FSK)
1st IF: 73.05 MHz
2nd IF: 8.83 MHz
3rd IF: 455 KHz
4th IF: 100 KHz
Sub RX: Double conversion superheterodyne (SSB/CW/FSK)
1st IF: 40.055 MHz
2nd IF: 10.695 MHz
Sensitivity: AM (10 dB S+N/N)
0.1-0.15 MHz: 25 uV
0.15-0.5 MHz: 10 uV
0.5-1.62 MHz: 32 uV
1.62-30 MHz: 2 uV
FM (12 dB SINAD)
28-30 MHz: 0.5 uV
SSB/CW/FSK (10 dB S+N/N)
0.1-0.15 MHz: 2.5 uV
0.15-0.5 MHz: 1 uV
0.5-1.62 MHz: 4 uV
1.62-30 MHz: 0.2 uV
Selectivity: AM (Wide)
6 KHz (-6 dB)
15 KHz (-50 dB)
AM (Narrow)
2.4 KHz (-6 dB)
3.8 KHz (-60 dB)
FM
12 KHz (-6 dB)
24 KHz (-60 dB)
SSB
2.4 KHz (-6 dB)
3.8 KHz (-60 dB)
CW (Wide)
2.4 KHz (-6 dB)
3.8 KHz (-60 dB)
FSK
2.4 KHz (-6 dB)
3.8 KHz (-60 dB)
Image rejection: 80 dB
AF output power / speaker: 1.5 W at 10% distortion / 8 ohm
External speaker connector: 3.5 mm, 8 ohm
TRANSMITTER SECTION
RF output power:
12-160 m 10 m
AM: 10-40 W 10-40 W
FM: 20-150 W 20-110 W
SSB (PEP): 20-150 W 20-110 W
CW/FSK: 20-150 W 20-110 W
Modulation system: AM: Low level modulation
FM: Reactance modulation
SSB: Balanced modulation
Max FM deviation (Factory set): ±5 KHz
Spurious emissions: Better than -40 dB
Microphone impedance / connector: 500 ohm to 5 Kohm / 8-pin (Metal locking ring connector.
Accessories Included
Shown in pictures
Condition of Item
Excellent
Payments Options
-
Paypal
-
Direct Deposit
-
Cheque
-
Cash
