ICOM IC7700 HF 6m Flagship Base $3500

< Previous Listing

Next Listing >

View Larger Gallery

$ 3,500.00

Listing
Tell a Friend

Quantity Available

Posted

8 months ago

Description

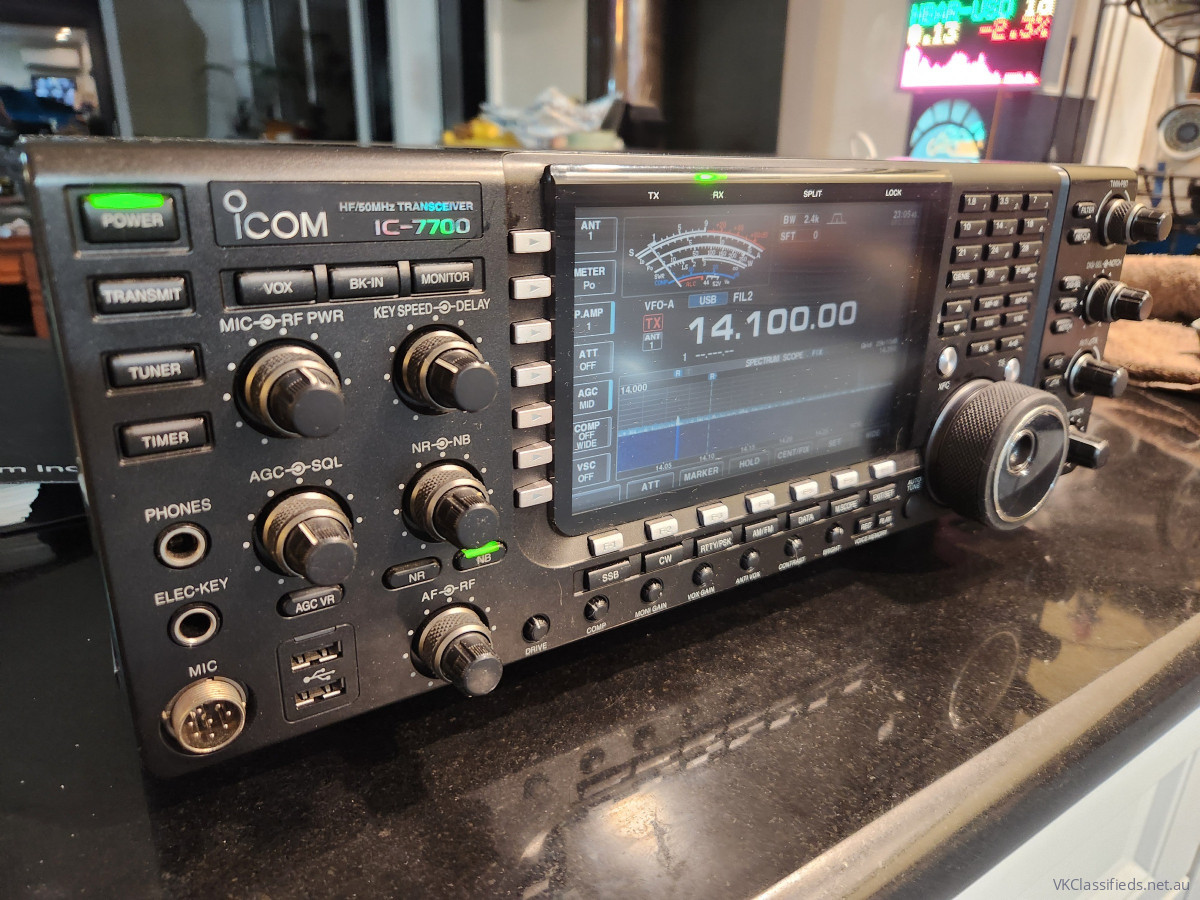

Beautiful box books one owner Icom IC7700 Flagship Base, minimal hours usage, and in excellent condition for its age.
Using this radio on air is just a dream, for its very expensive price when new, at $3500 its an amazing radio with features that will actually take you a while to learn, but what a radio when you realise the ability it has with noise suppression, with receiver variables that can be customised and so many user modes with inbuilt options like on-board rtty decoders and more. Tx is a solid clean 200w, again, its a hell of a lot of flagship radio for very little $$$$.
$3500 plus shipping
Email brenton@posnav.com.au
IC-7700 Specifications

General

Frequency coverage
- RX: 0.03 - 60.000 MHz *1
- TX:
  - 1.800 - 1.999 MHz
  - 3.500 - 3.999 MHz
  - 5.3305, 5.3465, 5.3665, 5.3715, 5.4035 *2
  - 7.000 - 7.300 MHz
  - 10.100 - 10.150 MHz
  - 14.000 - 14.350 MHz
  - 18.068 - 18.168 MHz
  - 21.000 - 21.450 MHz
  - 24.890 - 24.990 MHz
  - 28.000 - 29.700 MHz
  - 50.000 - 54.000 MHz
- *1 = Some frequency ranges are not guaranteed.
- *2 = USA version only.
Mode: USB, LSB, CW, RTTY, PSK31, AM, FM
Number of memory channels: 101 (99 regular, 2 scan edges)
Primary antenna connectors: SO-239 x4 (50 ohms)
Usable temperature range: +32°F to +122°F (0°C to +50°C)
Frequency stability: less than ±0.05 ppm (+32°F to +122°F, 0°C to +50°C )
Frequency resolution: 1Hz
Power supply requirement: 85-265 VAC
Power consumption:
- TX max power 800 VA
- RX standby 200 VA (typical)
- RX max audio 210 VA (typical)
Dimensions (projections not included): 16 11/16 (W) x 5 1/2 (H) x 16 17/32 (D) inches (424x150x420 mm)
Weight: 52.9 lb. (24 kg)
Display: 7-inch (diagonal) TFT color LCD

Transmitter

Output power (continually adjustable):
- SSB/CW/RTTY/FM: 5 - 200 W
- AM: 5 - 50 W
Modulation system:
- SSB: DPSN modulation
- AM: Low power modulation
- FM: Phase modulation
Spurious emissions: Less than -60 dB
Carrier suppression: More than 60 dB
Unwanted sideband suppression: More than 80 dB
Microphone connector: 8-pin connector (600 ohms)

Receiver

Receive system: Double conversion superheterodyne
Intermediate frequencies:
- 1st: 64.455 MHz (for all modes)
- 2nd: 36 kHz (for all modes)

Accessories Included

Shown in pictures

Condition of Item

Excellent

Payments Options

Paypal
Direct Deposit
Cheque
Cash

Postage - Freight

Buyer Pays
