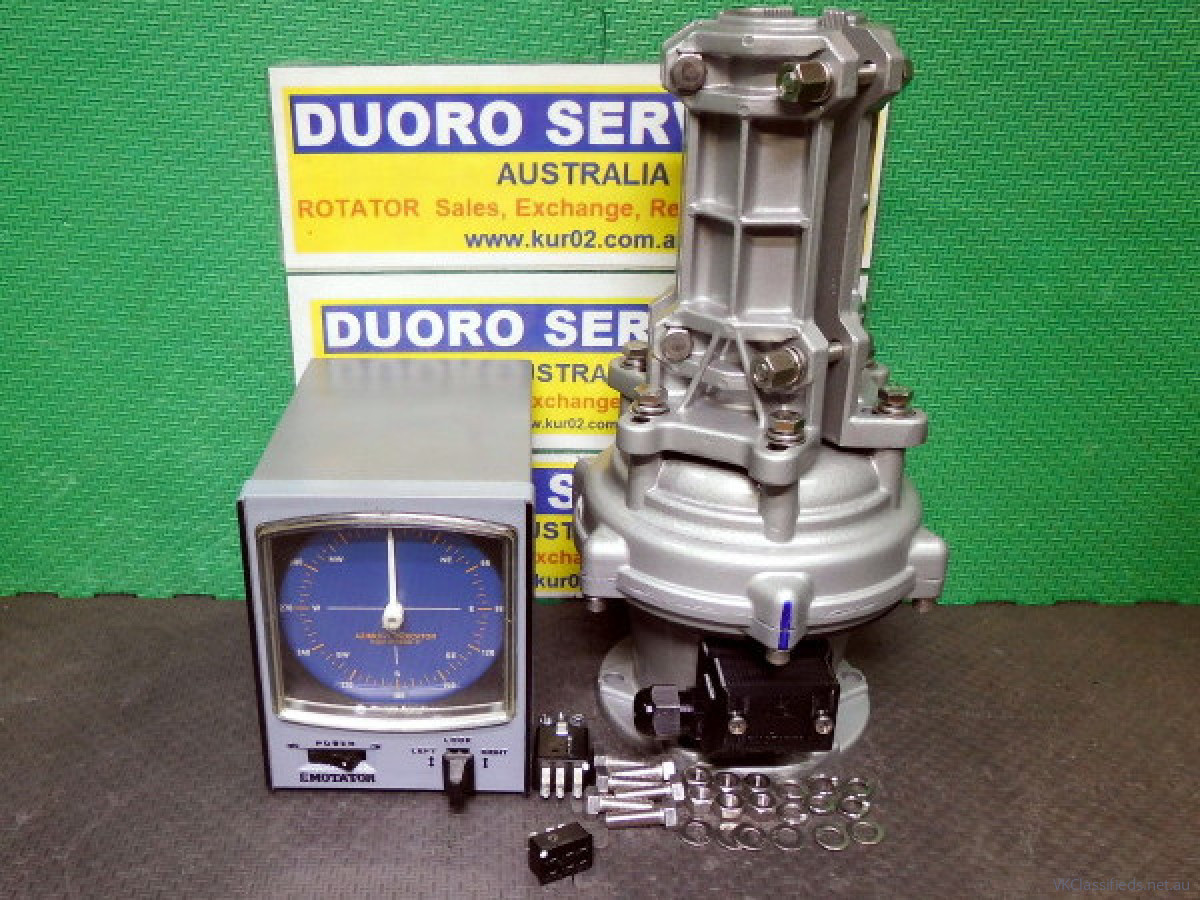

EMOTATAOR 502DSX Rotator Set

Refurbished & Upgraded Rotator Set.
Includes Top Mast clamp MC1213, Plugs for control, IEC power leads, Revised manual.

Wind Area ............................1.5m Sq.

Rotation Torque .................. 6.0 Kg/m

Brake Torque ................... ....40 Kg/m

Mast Size ..............................40 ~ 63mm. Self Centering 3 piece.

Rotation Time   .................... 66 second for 360 degree

Control cable      ...................6 core

Drive train............................. All steel reduction gearing with solid final gear

Rotator Voltage.....................100vAC.

Controller Features..............Full circle compass direction display with LED
                                               illumination, Momentary & lift to lock direction switch.

Rotator weight .....................4.8.0kg including Mast Clamp

Rotator Dimensions.............324 H x 184 Dia. , with a 136 dia. mounting base

Controller Weight ................2.3 kg

Controller Dimensions........120 W x 155 H x 180 D

Warranty................................24 month


The DSX Controller:- Full circle display with momentary & lift to lock paddle direction switch

Controller was completely disassembled, cleaned & prep for new parts, chassis was then re-zinc plated as well as the rear cover plate.

The front panel:- Has been prep with a special primer then paint smoke grey, A new 3D printed knob was installed.

The back panel:- New 6 pin Cinch socket & cover plate, Fused IEC 240v socket, Meter calibration POT & earth bolt.

On the inside: - I replaced the original belt driven direction display assembly with a gear driven driven version from a Kenpro KR-400RC. This assembly was upgraded LED illumination powered by one of my yLED-ac PCB's which has brightness control. Fully rewired, then Calibrated & aligned to the 502 rotator.

The 502 Rotator: - Has a BK brake system mounted to the motor.

Disassembled to the last nut, bolt & screw, then cleaned & check all parts for damage. The top gear chassis was re-zinc plated. Refurbished the 600 ohm POT.

All the housings & mast clamps have been Glass Bead Blasted by IMPACT GLASS BEAD follow by etch primer & then sprayed in Hammertone Silver Epoxy Enamel paint. The stainless steel hardware was cleaned in a special solution. Replaced the terminal cover with a new 3D printed version with a proper cable gland. Installed new 6pin CINCH Male chassis plug & includes a new F/M socket. Fully rewired.

Affixed the gear shafts into the gear chassis, The gears were aligned the fully assembled into the refurbished housing with the new bearing & new grease through out.

Re-aligned & calibrated with the DSX controller.

240vAC. 24 month warranty.

This unit is available for exchange. Check details on my web site.
Contatct Peter of DUORO Services via the email service provided by VK Classifides or via the link on the home page.
