You are bidding on one Intermediate Frequency Amplifier AM-427 for the PRC-9, -9A, -10 and -10A transceivers. The centre frequency is 4.3 MHz. There are several; tell me how many you want so I can produce an appropriate invoice for you.
The non-A transceivers used five of these amplifiers, each about 22 dB gain. So, the receiver is quite sensitive. The A models used four of these amplifiers, replacing one with a pulse generator to aid AFC.

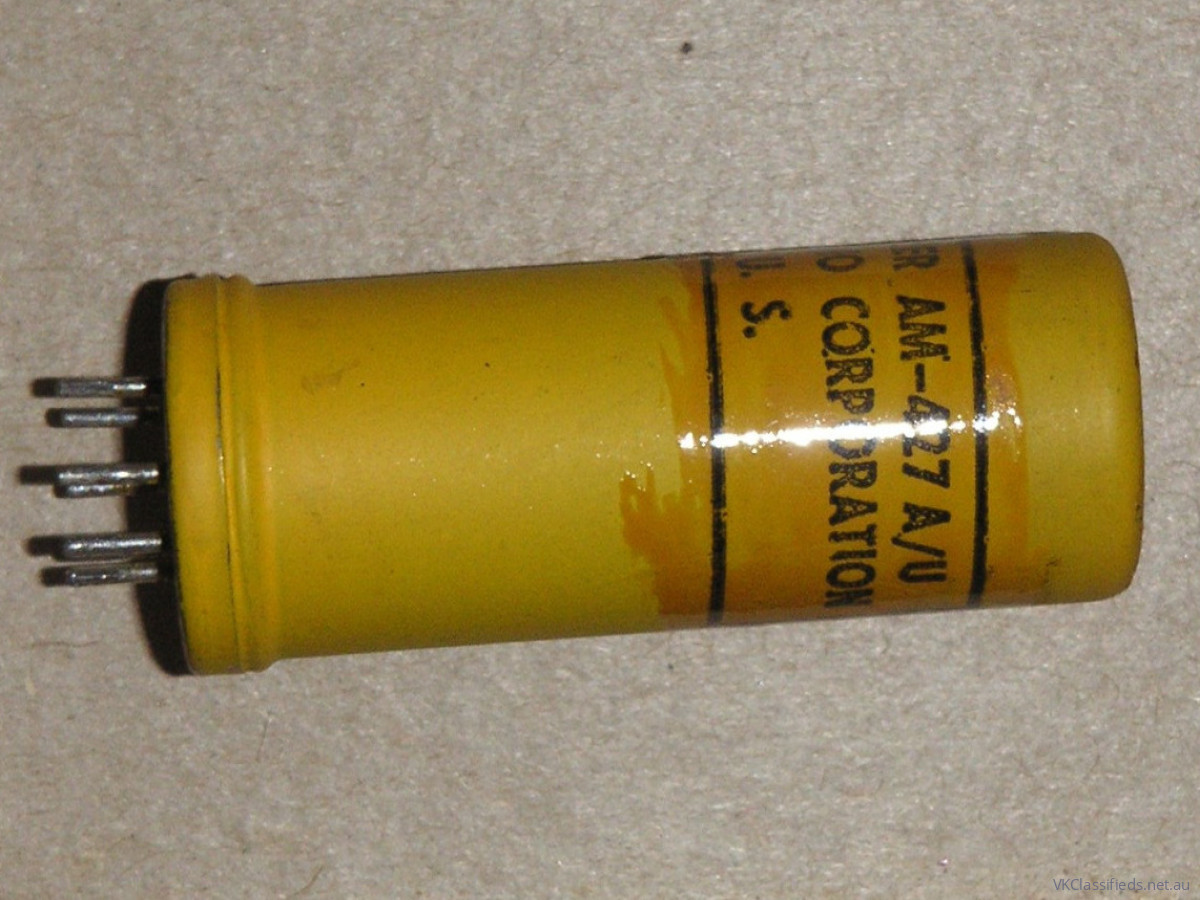

The amplifier contains an IF transformer and a valve / tube amplifier. It is completely hermetically sealed - see photos, where I have also shown the sub-miniature valve / tube used in this amplifier; separate valves are available as extras.
A typical failure of these amplifiers is the valve / tube heater goes open circuit especially if the battery ground lead comes adrift. Then, the full HT gets applied to the heaters and they all blow.
You can
I started collecting PRC-9, -9A, -10 and -10A transceivers intending to use them on the radio amateur bands. The PRC-9 and -9A can cover the amateur 10-m band, but few radio amateurs use FM in the 10-m band. The PRC-10 and -10A can cover the amateur 6-m band, but much amateur radio communication is via repeaters with a receive / transmit frequency offset that is difficult to use on these transceivers.
I have now sold my PRC-9, -9A, -10 and PRC-10A transceivers. So, I no longer need spares.
Packaging
I make no charge for packaging. Your item will be properly wrapped and packed to withstand the usual rigors of postal and courier delivery systems.
Shipping - please read
You must ask me to quote the shipping charge; why?
The non-A transceivers used five of these amplifiers, each about 22 dB gain. So, the receiver is quite sensitive. The A models used four of these amplifiers, replacing one with a pulse generator to aid AFC.
The amplifier contains an IF transformer and a valve / tube amplifier. It is completely hermetically sealed - see photos, where I have also shown the sub-miniature valve / tube used in this amplifier; separate valves are available as extras.
A typical failure of these amplifiers is the valve / tube heater goes open circuit especially if the battery ground lead comes adrift. Then, the full HT gets applied to the heaters and they all blow.
You can
- use it for replacing one or more failed amplifiers in your PRC-9, -9A, -10 and -10A transceiver
- use it as is in a 4.3 MHz IF chain of your own design
- add it to your collection of Korean and Vietnam War era spares or collectibles.
I started collecting PRC-9, -9A, -10 and -10A transceivers intending to use them on the radio amateur bands. The PRC-9 and -9A can cover the amateur 10-m band, but few radio amateurs use FM in the 10-m band. The PRC-10 and -10A can cover the amateur 6-m band, but much amateur radio communication is via repeaters with a receive / transmit frequency offset that is difficult to use on these transceivers.
I have now sold my PRC-9, -9A, -10 and PRC-10A transceivers. So, I no longer need spares.
Packaging
I make no charge for packaging. Your item will be properly wrapped and packed to withstand the usual rigors of postal and courier delivery systems.
Shipping - please read
You must ask me to quote the shipping charge; why?
- There are often differences between what Australia Post's and other carriers' online calculators show, and what they actually charge. Generally, Australia Post uses the quickest delivery method, such as one of the more expensive Air Mail modes.
- Australia Post calculates postage based on the weight and dimensions I have given. Sendle calculates postage based on the same weight and dimensions.
- If you win several items, I will bundle them to get you the most economical shipping charge.
Condition of Item
As New
