ICOM ID-5100A Dual Band D-STAR Mobile

ICOM ID-5100A Dual Band D-STAR Mobile — full accessories & box

For sale: Icom ID-5100A dual band (VHF/UHF) D-STAR mobile transceiver, in as-new condition.

The ICOM ID-5100A is a dual-band VHF/UHF mobile transceiver featuring D-STAR digital capabilities, a detachable touch-screen control head, and integrated GPS. It is designed for amateur radio operators requiring advanced digital voice and data modes alongside traditional FM operation.

Key Specifications

Bands:2 meters (VHF) and 70 centimeters (UHF)

Output Power:50W (High), 20W (Mid), 5W (Low) on both bands

Receiver Coverage:118–174 MHz (Air band) and 375–550 MHz

Display:5.5-inch screen (320 × 128 pixels) with QWERTY keypad

GPS: Built-in GPS receiver in the remote control head (no external antenna needed)

Modes: FM, D-STAR (DV mode for voice/data, DD mode for high-speed data)

Simultaneous Receive: FM/FM, FM/DV, and dual DV monitoring

Data Rate: 3,480 bps for D-STAR data (approx. 3.5x faster than standard DV voice frames)

Power Supply: 13.8 VDC (12–15 VDC range), max current ~13A

Dimensions: (Main Unit)    5.91" W × 1.57" H × 6.80" D (approx. 150 × 40 × 173 mm)

Weight:    ~2.87 lbs (1.3 kg) for main body; control head is lighter

Connectivity: Bluetooth (via UT-133 board) for VS-3 headset and Android control (included)

Notable Features:

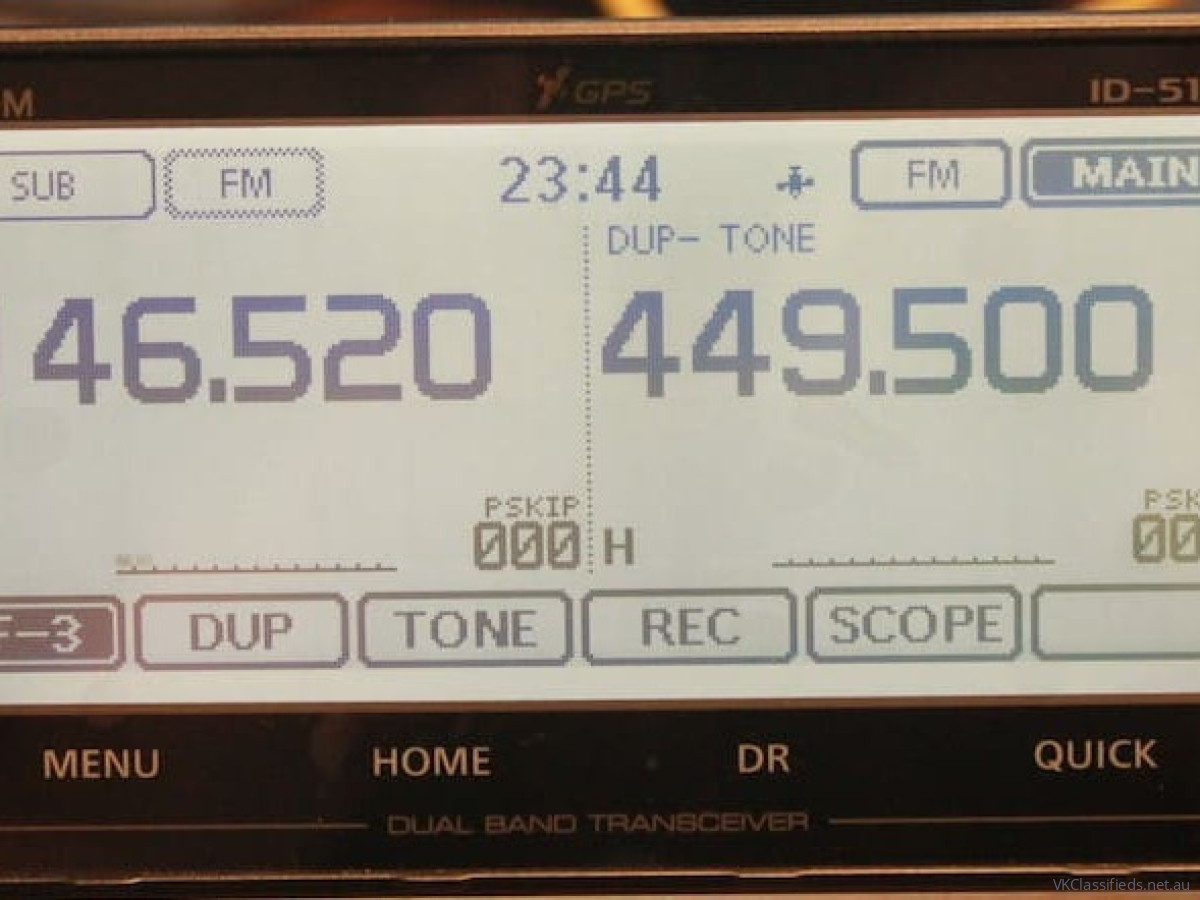

Detachable Touch Panel: The control head separates from the main unit, featuring an intuitive menu system and software keypad for easy frequency and memory entry

Integrated GPS: Displays your position, course, speed, and altitude on the screen. It supports D-PRS (Digital Position Reporting System) for sending/receiving position data and finding nearby repeaters automatically

Dual Watch & Priority: Capable of monitoring two different bands or modes simultaneously. If two DV signals arrive at once, the main band audio takes priority

Repeater List: Uses GPS data to automatically find and list nearby D-STAR repeaters, useful for travel

Optional Bluetooth: With the UT-133 board, you can connect the VS-3 headset for hands-free operation or use the RS-MS1A Android app for remote control and mapping


Purchased June 2024.

Comes complete with:

ID-5100A main unit + separation mount control head
All original accessories (mic, display mounting bracket, cables, etc)
Printed manual (original)
Original box/packaging

The radio works perfectly, no issues.

Note, this unit has the optional Bluetooth module (ICOM UT-133, $100 value) installed.

I am selling as it has been used mainly in the shack and as I have a number of other dual band radios that I also use, the ID-5100 has been getting very little use of late.
