Description

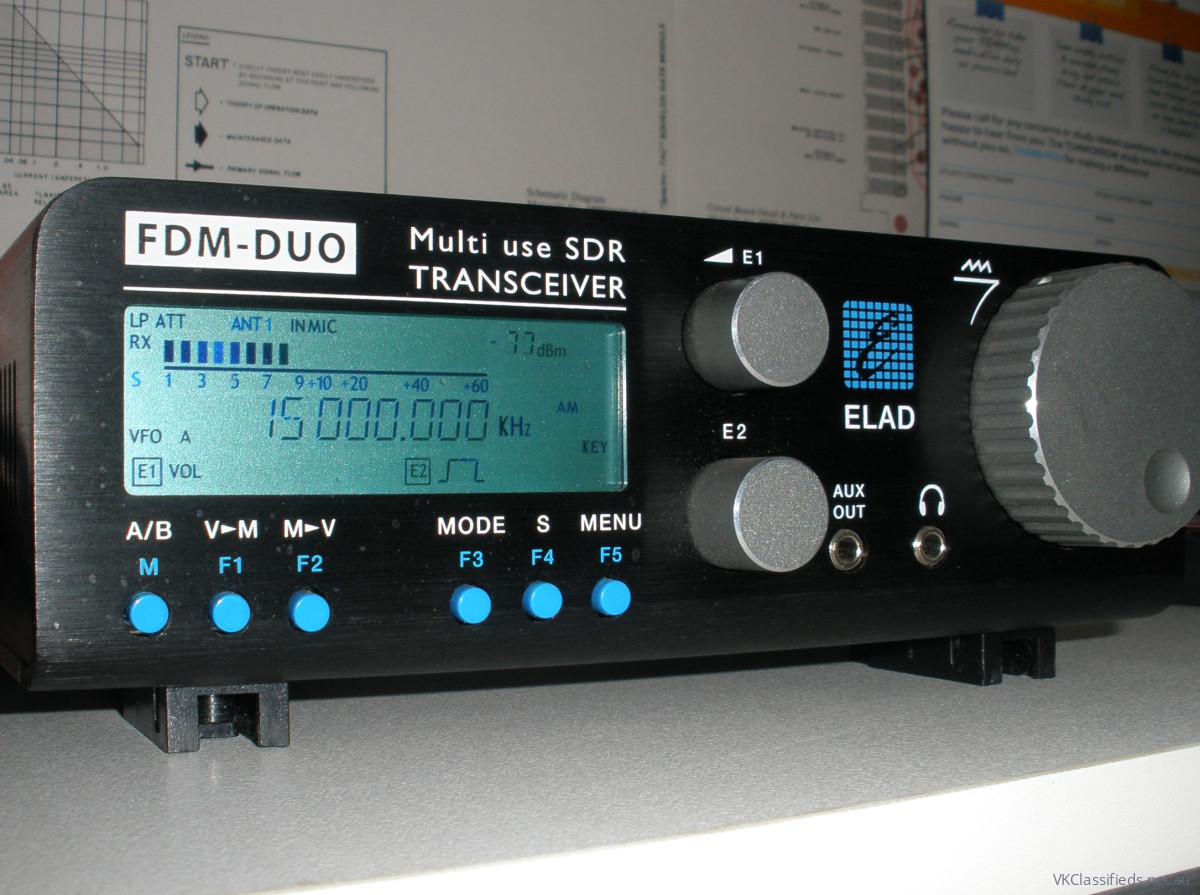

Elad FDM Duo SDR Transceiver in as new condition.
Can be operated Stand Alone or via a PC using FDM-SW2 software.
Microphone, Power Lead, Cables and USB with the latest Manuals and Software supplied.
TX Stand-Alone Specifications
General Specifications
Operation Specifications with FDM-SW2 Software
Go to:- https://www.eladit.com/en/download?path=sdr%2FFDM-DUO for all current information.
Can be operated Stand Alone or via a PC using FDM-SW2 software.
Microphone, Power Lead, Cables and USB with the latest Manuals and Software supplied.
- RX Stand-Alone Specifications
- Frequency range: 10kHz - 54MHz.
- Demodulation: CW, CWR, LSB, USB, AM, FM narrow.
- Selectable LSB and USB filters; 1600Hz to 3100Hz with 100Hz step plus 4000Hz, 5000Hz and 6000Hz values.
- Selectable AM filters from 2500Hz to 6000Hz with 500Hz step.
- Selectable CW filters; 2600Hz, 1500Hz, 1000Hz, 500Hz, 300Hz and 100Hz plus 4 CW peak filters applied after 100Hz filter to obtain an overall filter of 20Hz bandwidth.
- Selectable FM filters: narrow, wide and data.
TX Stand-Alone Specifications
- Supports bands from 160m to 6m.
- Modulation: CW, LSB, USB, AM, FM narrow.
- Key and Paddle input for CW operation, supports Iambic A and B, settable CW speed for Paddle, settable CW delay.
General Specifications
- Power supply: 2.1mm DC Plug, 13.8VDC.
- RX consumption: typ. 500mA@13.8VDC.
- TX consumption: <2.2A@13.8VDC (5W output).
Operation Specifications with FDM-SW2 Software
- Up to 4 simultaneous virtual receivers in single channel mode.
- Up to 8 simultaneous virtual receivers in double channel mode.
- Dedicated Audio Channel for each virtual receiver.
- Dedicated CAT Channel for each virtual receiver.
Go to:- https://www.eladit.com/en/download?path=sdr%2FFDM-DUO for all current information.
Accessories Included
Shown in pictures
Condition of Item
Excellent
Payments Options
-
Paypal
-
Direct Deposit
-
Cheque
-
Cash
Postage - Freight
Seller Pays
-
