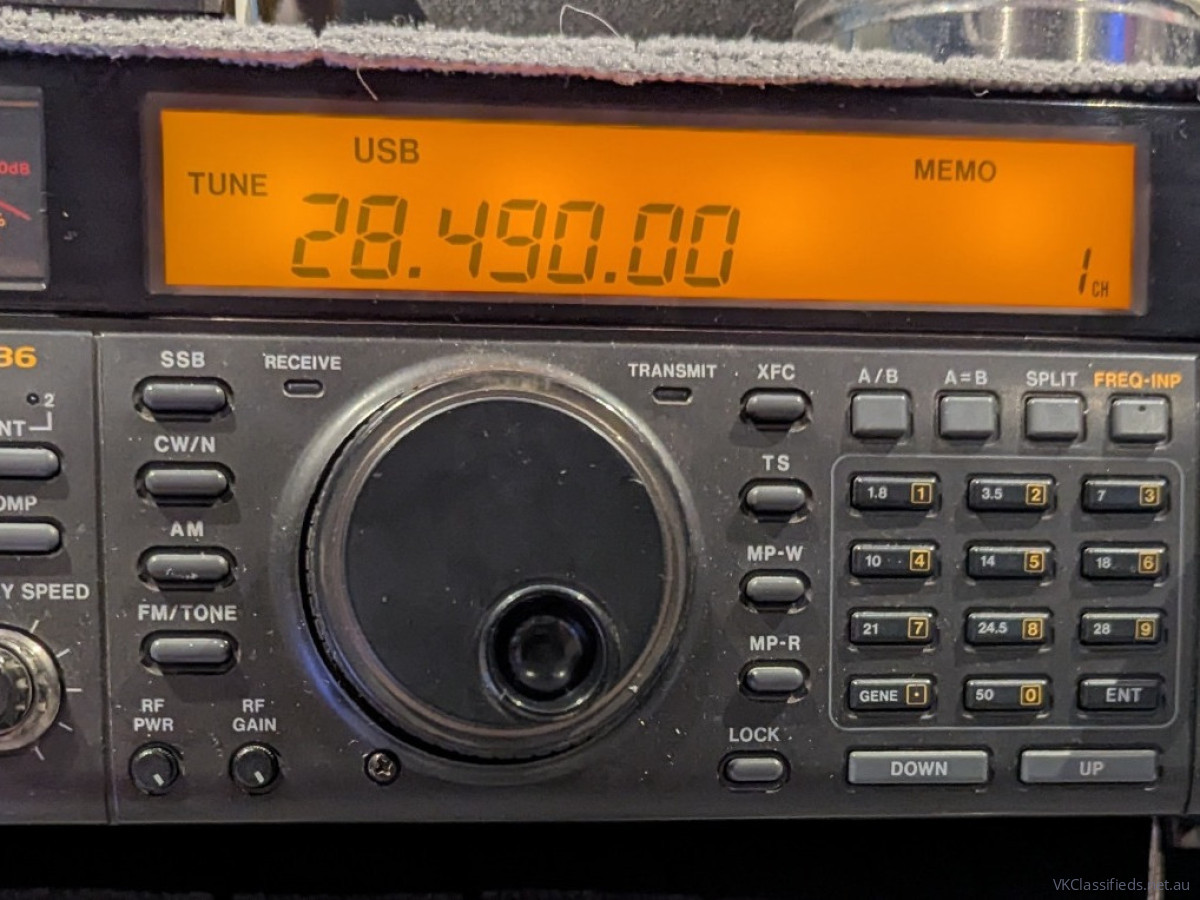

Icom 736 Built in tuner and Power Supply VGC

• Receive:

  500 kHz - 29.995

  50 MHz - 54 MHz

  Transmit:

  1.800 - 1.99999 MHz

  3.500 - 4.000 MHz

  7.000 - 7.300 MHz

  10.100 - 10.150 MHz

  14.000 - 14.350 MHz

  18.068 - 18.168 MHz

  21.000 - 21.450 MHz

  24.890 - 24.990 MHz

  28.000 - 29.700 MHz

  50.000 - 54.000 MHz

• Mode: SSB, CW, AM, FM
• Number of memory channels: 101 (89 regular, 10 split, 2 scan edges)
• Antenna impedance: 50 ohms nominal
• Usable Temperature Range: -10°C to +60°C; +14°F to +140°F
• Frequency stability: Less than ±200 Hz from 1 min. to 60 min. after power ON. After that, the rate of stability change is less than ±30 Hz/hr at +25°C; +77°F. Temperature fluctuations (0°C to +50°C; +32°F to +122°F) less than ±350 Hz.
• Power Supply Requirement: 120 V type 85 - 135 V AC; 230 V type 187 - 265 V AC
• Power consumption:

  Transmit: max. power 500 VA

  Receive: squelched = 75 VA; max. audio = 80 V

• Dimensions: 330(W) x 111(H) x 285(D) mm, 13.0(W) x 4.4(H) x 11.2(D) in (projections not included)
• Weight: 10.5 kg; 23.1 lb.

Transmitter

• Output power:

  SSB, CW, FM: 5 - 100 W continuously adjustable
