WARS Anderson Powerpole DC distribution Kit

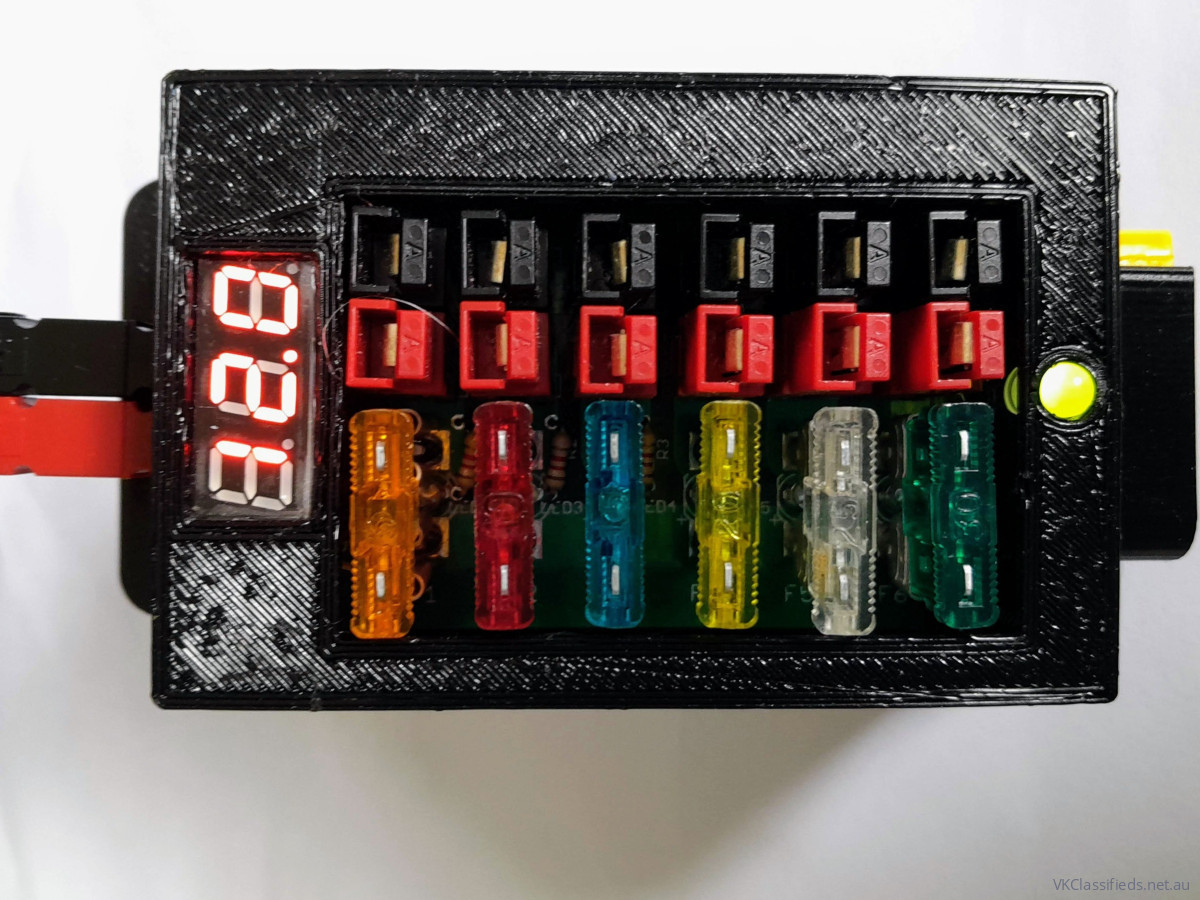

This is a DC distribution box kit using Anderson
Powerpoles, the now almost universal method of
connecting 12v equipment

Kit includes all the parts needed to make one DC power distribution box, in a
supplied 3D Printed Case.
The case is made with PETG, a tough and durable material that withstands up to about 80 deg C and has high impact & chemical resistance.
1. One input connector may be replaced by a direct cable input.
2. 6 outputs.
3. Each output is fused with a standard blade fuse.
4. Each fuse has a RED LED indicator under it to indicate a fuse failed
condition.
5. Main Indicator LED to indicate power present and correct polarity.
GREEN = Power available at correct polarity. RED = Power available but
reverse polarity.
6. Designed to fit inside included 3D Printed box (approx L111x W55x H33mm).
Assembled weight 100 grams.
7. All components are supplied (including 7 power pole connectors) for
mounting on the double-sided PCB with double thickness tracks (2oz copper)
and all plated through holes. PCB is also RoHS compliant.
8. Voltmeter (included) installable in the box
Note that this is still all in kit form, soldering and assembly are required and
you may need something to hold the meter in place, hot glue, or Araldite.
Order HERE : https://vk2bv.org/home/store/
We also have an upgrade version with three 5 volt USB sockets.

Any Issues email treasurer@vk2bv.org.
