Microwave bits & pieces for sale.

$ 20.00
Posted
1 day ago
Description
Hi,
I have the following microwave items up for grabs. Prefer pickup from 3093 but as they are all  compact, willing to post.

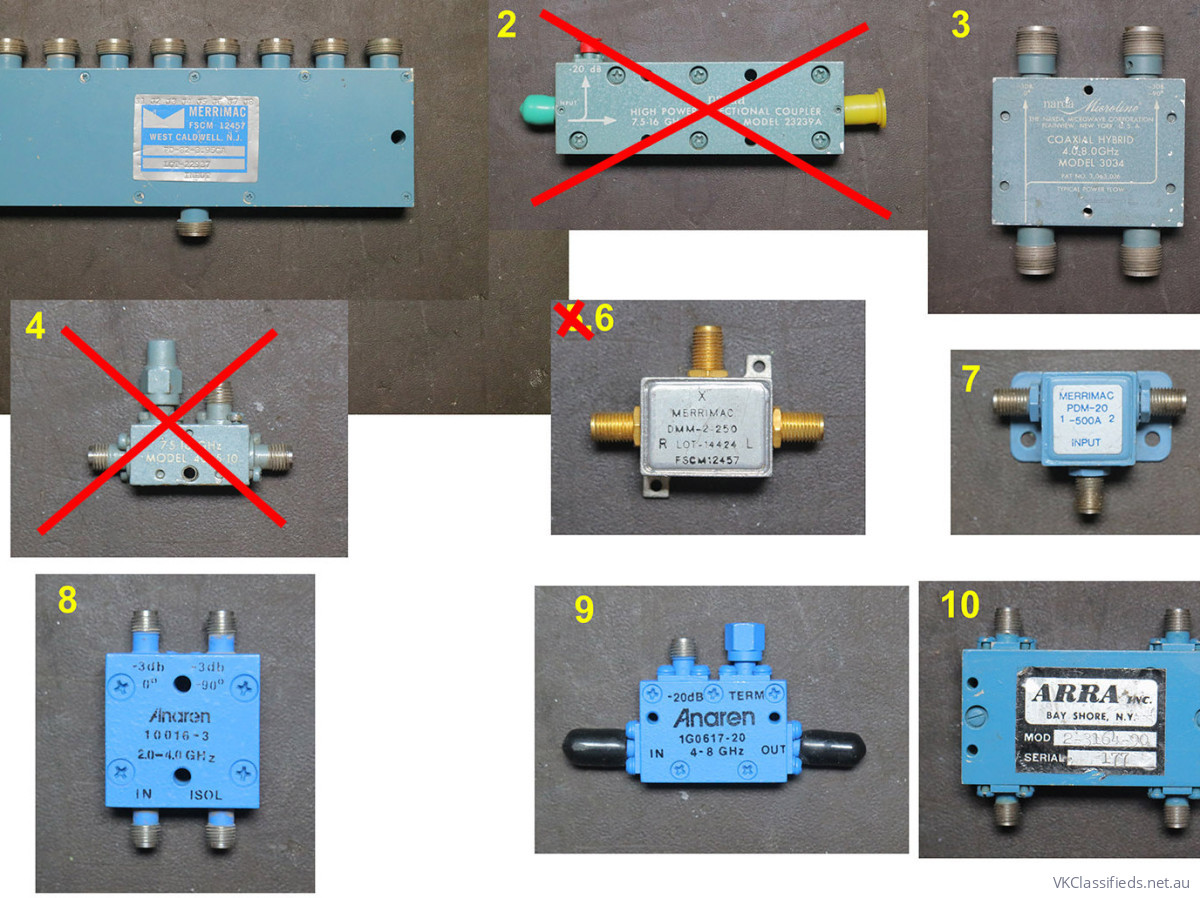

01) Merrimac, PD-82-3.95GA, 0 degree 8 way splitter/combiner, 3.7-4.2GHz, insertion loss 1dB, isolation >20dB, amplitude balance 0.3dB, phase balance <8 degree, 20W, N(f) $10

02) Narda, 23239A, High Power Directional Coupler, 20 dB, 7.5-16.0 GHz, 100 Watts, TNC(f/f)/SMA(f) $15

03) Narda, 3034, Coaxial Quadrature Hybrid, 4-8GHz, 3dB, N9f), 100W (possibly 200w) $5

04) Narda, 4055-10, 10dB coupler, 7.5-16GHz, coupling 10dB +/- 1.5, directivity 12 dB, insertion loss 1dB, 50W, sma(f) $15

05) Merrimac, DMM-2-250, Double balanced mixer, RF/LO 1-500MHz, IF DC-500MHz, conversion loss ~7.5dB, sma(f) $20

06) Merrimac, DMM-2-250, Double balanced mixer, RF/LO 1-500MHz, IF DC-500MHz, conversion loss ~7.5dB, sma(f)$20

07) Merrimac, PDM-20-500A, 0 degree splitter/combiner, 5 - 1000 MHz, isolation 25 dB, insertion loss 0.7dB, amplitude balance, 0.1dB, phase balance 2 degree, 1W, sma(f) $15

08) Anaren, 10016-3, hybrid coupler 90 degree, 2-4GHz, amplitude balance 0.5dB, phase balance 2 degree, isolation > 25dB, 100W, sma(f) $10

09) Anaren, 1G0617-20, directional coupler 20dB, 4-8GHz, coupling 20dB +/-1dB, insertion loss 0.5dB, directivity >16dB, 100W (forward) 50W (reverse), sma(f) $15

10) Arra, 2-3164-90, 90 Degree Hybrid Coupler, 925-1225MHz, isolation 25dB, insertion loss 0.25dB, 100W, sma(f) $5

11) Midisco, MDC-7226, coaxial hybrid 90 degree,  4-8 GHz,  insertion loss 3.2 ±0.7 dB, isolation 18dB, amplitude balance +/- 0.5dB, 50W, sma(f) $10

12) M/A-com, 2031-6340-00, 180 degree Hybrid Coupler, 3 dB, 1.0-12.4 GHz, SMA(f). two inputs, sum & delta outputs. $75

13) Miteq, M20H8, mixer - don't have any data, sma(f) Believe this is 1.3-8.4 GHz on the RF port $5

14) Narda, 4034, stripline quadrature hybrid, 4-8GHz, insertion loss 0.3dB, amplitude balance 0.6dB, phase balance 10 degree, 50W, sma(f) $10

15) Watkins Johnson, WJ-795-4D, 1-18.2GHz yig filter, 3dB passband ~40MHz, perhaps 100-500mA for the full range but no datasheet available, sma(f) $20

16) Filtronic, FS2406, YIG oscillator, 4-7GHz, $20

17) Watkins Johnson YIG tuned multiplier, 1.2 to 2.2 GHz, $5

18) YIG TEK, 183-43, YIG filter, bandwidth ~ 50MHz, believe this is 2-18GHz but no datasheet available., $15

19) Time, DXM511-2, RF/IF, 2.0 - 26.0 GHz, IF DC-500MHz sma(fff) $100

20) Avantek, ASF-8368M, YIG oscillator, 2-4.1GHz, $15

21) Minicircuits, ZFL-2500, amplifier, 0.5-2.5GHz, Gain: 28dB, P1dB: 15dBm, sma(ff),$50

22) Minicircuits, ZFL-2500, amplifier, 0.5-2.5GHz, Gain: 28dB, P1dB: 15dBm, sma(ff),$50

23) Minicircuits, ZFL-2500, amplifier, 0.5-2.5GHz, Gain: 28dB, P1dB: 15dBm, sma(ff),$50

24) Picosecond Labs, 5828-108, Amplifier, 60kHz - 15GHz, Gain: 10dB, P1dB: 11dBm, sma(ff), $100

25) Picosecond Labs, 5828-108, Amplifier, 60kHz - 15GHz, Gain: 10dB, P1dB: 11dBm, sma(ff), $100

26) Miteq, DM0204LW2, Mixer, RF/LO 2-4GHz, IF DC-1GHz, sma(fff), $75

Greg

Payments Options
  • Paypal
  • Direct Deposit
  • Cheque
  • Cash
Postage - Freight
Buyer Pays
