W2IHY iPlus Audio Swtich

$ 200.00
Quantity Available
1
Posted
2 days ago
Description

iplus Product Specifications

FRONT PANEL CONTROLS

Front Panel Radio Select Switch

  • Switches input audio from a single source to up to 3 radios
  • Switches PTT line for TX/RX control of selected radio
  • Switches radio speaker audio from 3 radios to a one set of mono or stereo speakers
  • Accepts amplifier keying from 3 radios to key a linear amplifier

Invert Phase Switch

  • Reverses the phase of the audio output 180 degrees for proper AM modulation asymmetry

Output Level Controls

  • Individual output level control for the radio selected
  • Set precise drive level to each radio
  • Allows mic level up to line level output to your transce

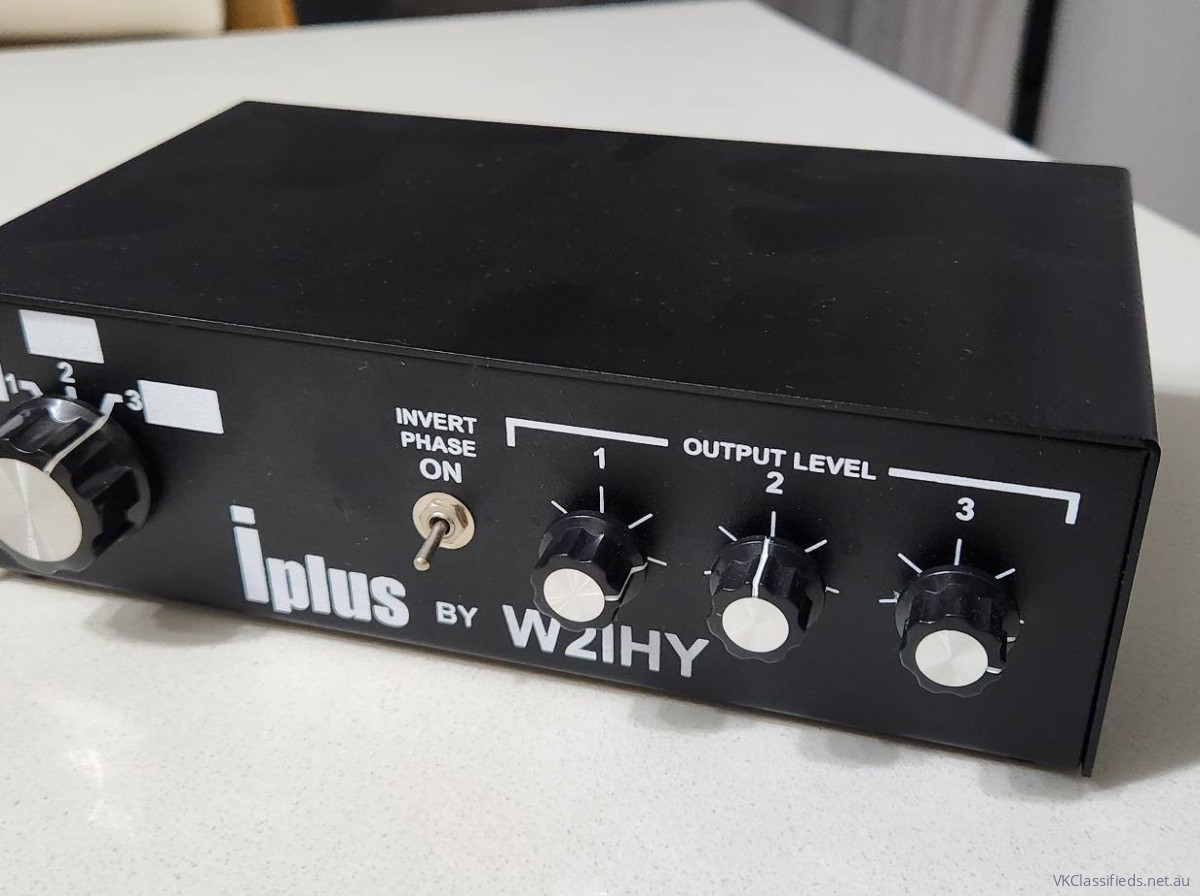

 iPlus 3 Level Pots

iPlus RCA Jacks

REAR PANEL CONNECTORS



Audio Input Connectors (Line Level and Isolated)

  • Combined XLR receptacle and ¼” TRS phone jack that supports balanced and unbalanced inputs
  • DIN (Aux Input) for connection of W2IHY audio products
  • ¼” TRS phone connection is compatible with iBox output

PTT Input (RCA)

  • Adds “push to talk” control with foot switch, hand switch, etc

Three Audio Output Ports (5-pin DIN)

  • Interface up to 3 radios (6 radios with additional iplus)
  • Front panel port / radio selector switch
  • Low-Z balanced and unbalanced outputs
  • 5 Pin DIN connectors with wiring compatible with other W2IHY products
  • Prewired cable assemblies available (optional)

Speaker audio switched from 3 radios to a single speaker system

  • RCA inputs and outputs
  • Stereo inputs and outputs supported
  • Speaker grounds isolated
  • Prewired cable assemblies available (optional)

Linear amplifier keying controlled from 3 radios with a single connection to the linear amplifier

  • RCA inputs and output
  • Supports active and passive keying from radios
  • Prewired cable assemblies available (optional)

Separate iplus Chassis Ground AvailableDimensions – 9” W x 3” H x 5.5” D (Including Feet and RCA’s)
