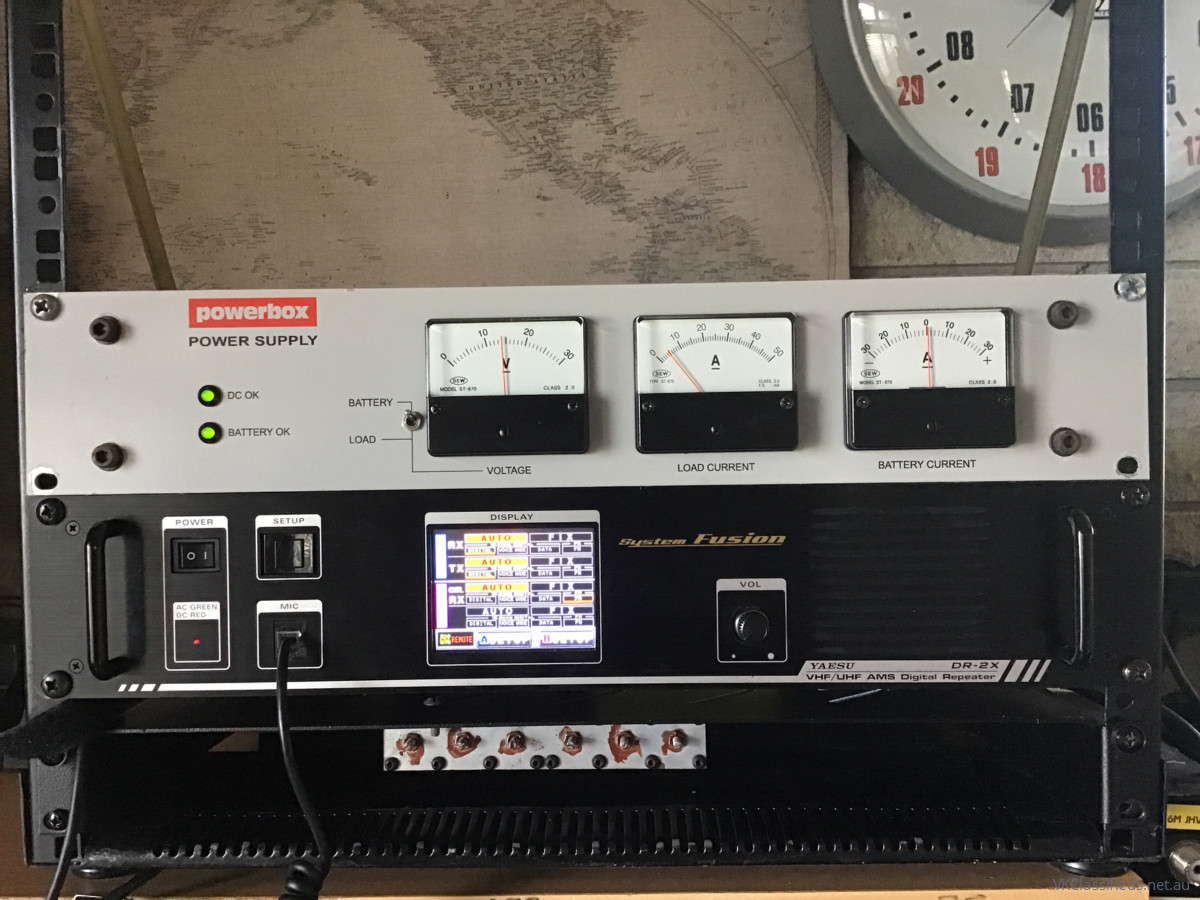

Complete UHF Yaesu DR-2X AMS Repeater System

Diplexer currently 431/438 7 mhz split
HRI-200 computer interface and leads.
fist mike.
LAN plug in  board
(not fitted but available if requested for new mesh irlp vk5/system)
Can transfer registration from wires X to new club.
discount for first club to step up
last of dual banders  new dr2 are mono band only.
prefer club buys this and gets benefit from the months of work we put in.
ready to go subject to Frequency approval.
This can be done by an AP for fee or WIA for fee.


This is a professional-grade,
dual-band (144/430 MHz) digital and analog conventional FM repeater.
Currently aligned on the new 7 mhz split including six port diplexer.
Single antenna required for uhf.
VHF link command frequency  on 145 mhz in the license if required to turn timers and repeater on and off remotely,

Built for fusion but  it features Automatic Mode Select (AMS) to instantly identify and re-transmit C4FM digital or analog FM signals, a 3.5-inch color touch panel, and 50W of RF power output.

Has voice id digital id and morse id selectable in the wires x program
Can be locked in either mode
can be set up as a pdn nd or repeater in band or cross band.

Suggest you read the specs this can do loads more that advertised

Key Technical Specs

• Frequency Range: 144–148 MHz (VHF) and 430–450 MHz (UHF)
• Currently on 431/438 Tone licensed as VK3R... until 2027
• RF Output Power: 50W, 20W, or 10W (adjustable)
• currently on 20 watts.
• Power Supply: external commercial Power Box 30 amp
•  AC (240V) with automatic DC backup switching 13.8:vdc.
• Form Factor: Standard 19-inch rack-mount unit
• A server cabinet can be included  if wanted.
• Also an optional Imark 5000 power supply if you prefer non switch mode.
• Prefer pickup or meet and greet
• ideal for new mesh repeater system.
