WoodBoxRadio (ELAD) T-Mate2 SDR Controller

WoodBoxRadio (ELAD) T-Mate2 SDR Controller

The Tmate2 is the solution for SDR users who require 'real knobs' on their radio.
The current configuration is:
E1 Volume
E2 Filter High / Low / Shift, press to select the desired option
Main Knob - Current receiver frequency, press for fast tuning
F1 Mute
F2 Toggle TX/RX
F5, F6 previous / next mode

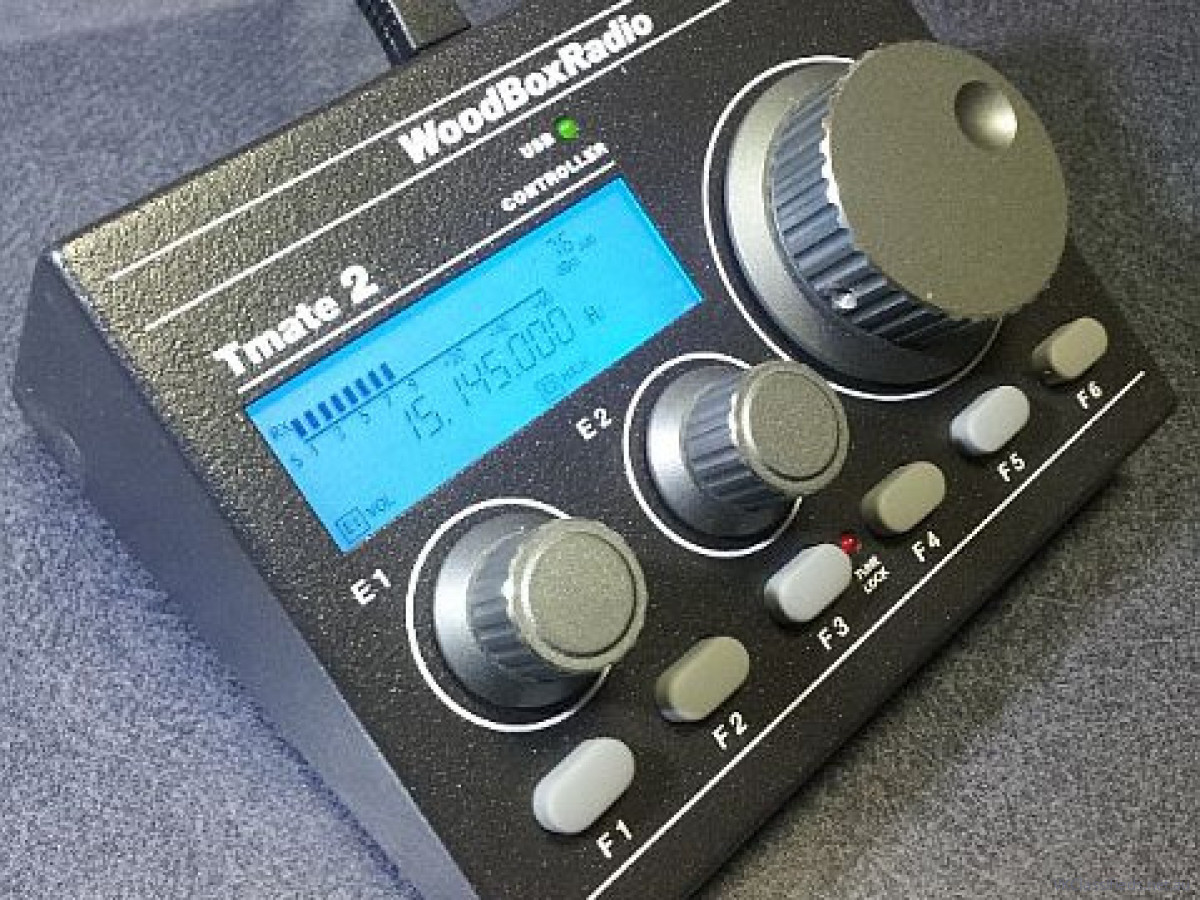

The TMATE-2 is a desktop controller for various SDR programs. It offers the same operational comfort as a traditional radio, combined with the most up-to-date SDR technology.

The TMate-2 controller is connected by USB to the computer running the SDR software. Depending on the software it offers controls for many functions which are known from a traditional radio front panel. The backlit LCD display (with selectable colour) shows the current frequency, the signal level, the current mode and much more.
Six push buttons are available for often used functions, for example for mode selection, step width, receiver mute etc. Two smaller and one large rotating encoders with heavy metal knobs serve for the frequency selection, volume or filter width control. Each of the rotary encoders is also a push button, which is used for example to switch functions temporarily. A huge benefit of the TMate-2 is, that the control of the SDR program is still possible in cases, where another software is active in the foreground of the computer.

The controller uses the standardized HID protocol for USB devices, and thus does not require special drivers on recent operating systems. The case is made from metal, giving the TMate-2 a solid touch and feel. The power supply is done over USB, no separate power supply required. Size 143 x 78 x 135mm, panel tilted by 45°, weight 780gm.

List of supported programs and devices:

FDM-SW1 [1]
FDM-SW2 [1]
Perseus (Microtelecom, alpha status, requires Tmate2CatControl Software)
SDR-Radio Console V2 [1]
PowerSDR (FlexRadio, Beta status, requires Tmate2CatControl Software)
HPSDR PowerSDR (Apache Labs ANAN-xx Transceiver, Beta Status, requires Tmate2CatConsole Software)
Studio1 [1]
N4PY Software [1]
and more...


[1] This program supports TMate-2 directly, without further software.
[2] This program requires further software for operation of the TMate-2, this additional software is not included. This additional software is a) Tmate2CatControl by Woodboxradio (free of charge) and b) a Virtual Serial Port Emulator.

The unit is in AS-NEW condition and will not disappoint!
Note: The User Manual is available online.
