WOLFWAVE Audio Processor

WOLFWAVE AUDIO PROCESSOR

WOLFWAVE is a powerful advanced audio processor for demanding communications applications.
WOLFWAVE simply connects to the headphone output of your radio.
Description
The Wolfwave is a digital audio filter that very efficiently improves the intelligibility of a received signal. This is achieved by a multi-level and adaptive processing of the audio signal: first the noise is reduced, then a bandpass filtering and finally an equalizer function. Each of the levels can be individually adjusted, the equalizer, for example, is able to respond very precisely to personal listening preferences. The audio filtering is supplemented by an adjustable notch filter (notch filter).

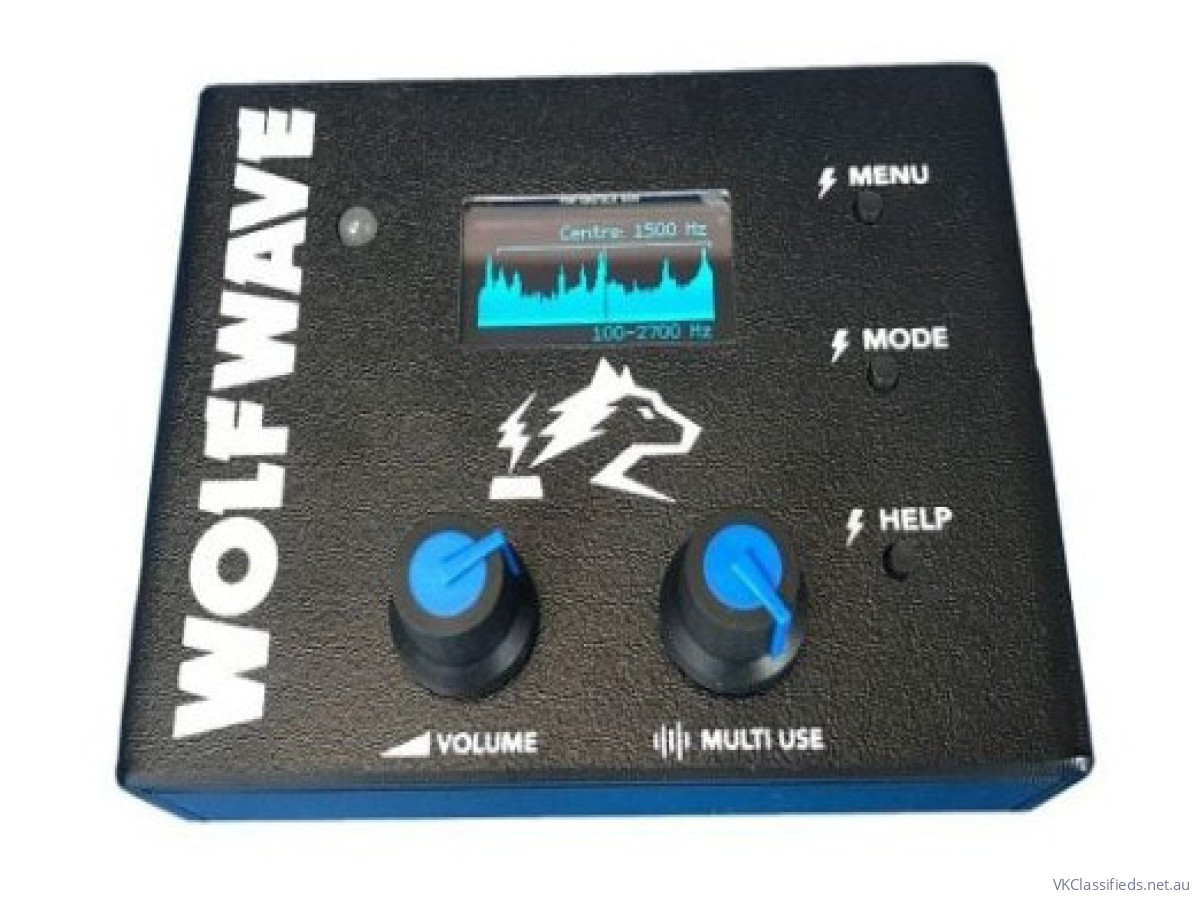

The Wolfwave Filter is equipped with an easy to read OLED display, convenient operation via the front with several pushbuttons and rotary knobs. The display provides a good overview of the respective function, making operation very easy. Once the user's optimal settings have been found, they can be stored separately in several memories, depending on the application and situation.
A "Bypass" function is directly available, so you can easily compare the original and the filtered signal and retune the filter if necessary.

Separate connectors for headphones and loudspeakers are available as outputs. A USB socket is used for firmware upgrades of the digital signal processor. The power supply is 12 V DC, the current consumption is only 60 mA. This makes the Wolfwave filter easy to use even with battery operation.

Feature Summary
* Binaural modes for CW - different tones come from different directions
* Notch filtering - ten notches all independently adjustable for superb QRM control
* Left/right volume balance - for users with asymmetric hearing loss
* Morse Decoder - 1- 100 words per minute
* Fully adjustable audio band-pass filtering - instantly adjustable for voice, data and CW (b/w 50 Hz to 5 kHz)
* State-of-the-art adaptive noise reduction - 100 levels plus advanced control functions
* Adaptive tone eliminator - get rid of annoying carriers - but leave CW
* One-touch bypass function - see how much improvement the WOLFWAVE makes
* Memories for your settings - easily store and recall your favorite settings
* Bright, clear, spectrum display - see what's happening in your radio pass-band
* Audio test generator including two-tone test mode - sine, square and triangular wave
* Experimental CW regenerator - enjoy noise-free CW QSOs
* On-screen help
* Tuning/Overload LED - dual colour indicator makes tuning easy
* User updatable firmware by USB - keep up with the latest developments (Windows app)
* Speaker output: 1.1 Watts @ 10% THD [speaker output must not be grounded] - full power achieved when using 12 Volt external supply

Firmware: https://www.wolfwave.co.uk/firmware
