$ 1,600.00
Quantity Available
1
Posted
1 month ago
Description

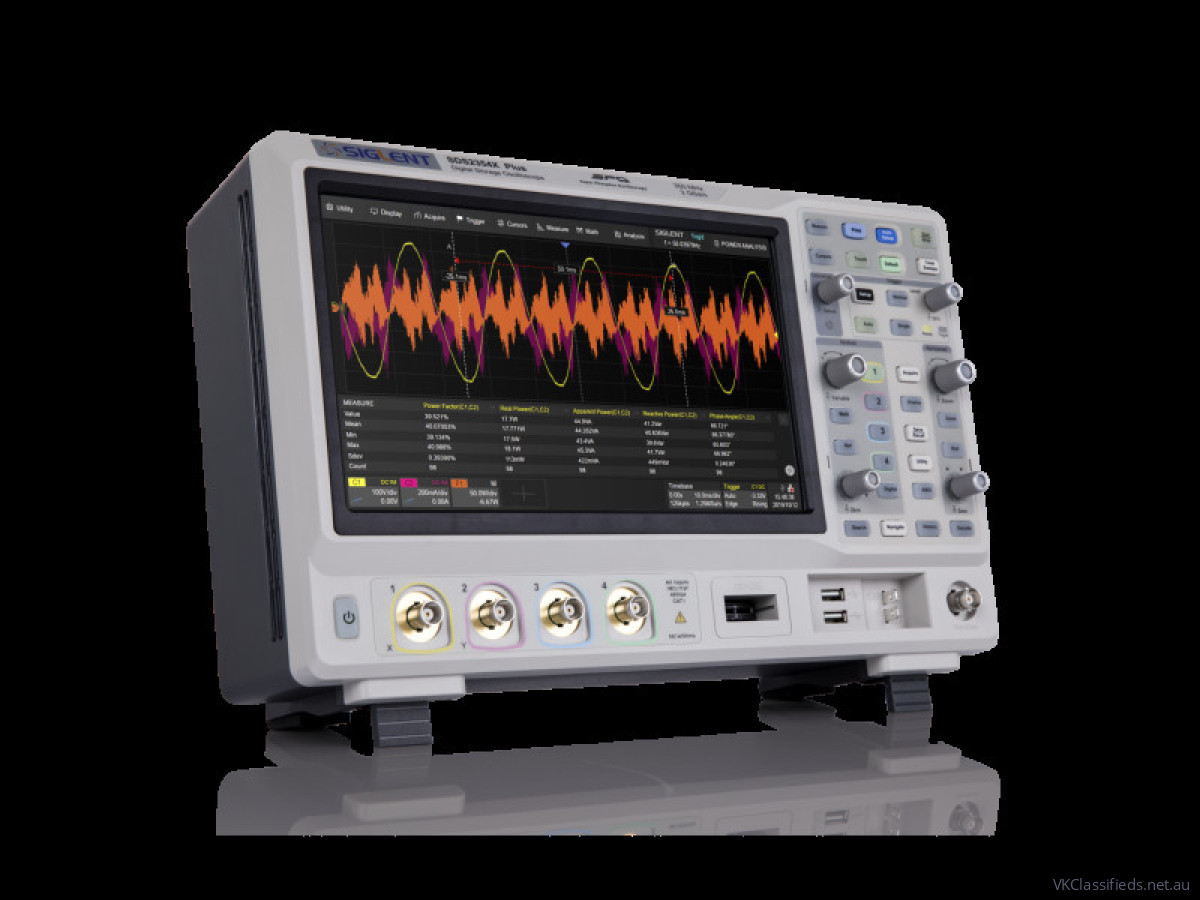

Current Model Siglent SDS2104X Plus 4 Channel Mixed Signal Oscilloscope
2GSa/s 10.1" Touchscreen
Has bandwidth licensed to 500 MHz with license key making it an SDS2504X Plus
Has ALL options enabled with license keys
Latest Firmware & OS
Built in Arbitary Waveform Generator
Built in 16 Channel Digital Logic Probe Operation with optional interface
As new in box with 4 x Probes etc
Offers considered
SIglent SDS2000X Plus Specifications
It's a reasonably big & heavy box so postage isn't cheap.
Pickup available
Might be able to meet somewhere too
2GSa/s 10.1" Touchscreen
Has bandwidth licensed to 500 MHz with license key making it an SDS2504X Plus
Has ALL options enabled with license keys
Latest Firmware & OS
Built in Arbitary Waveform Generator
Built in 16 Channel Digital Logic Probe Operation with optional interface
As new in box with 4 x Probes etc
Offers considered
- New generation of SPO (Super Phosphor Oscilloscope) technology.
- Waveform capture rates up to 120,000 wfm/s (normal mode) and 500,000 wfm/s (sequence mode).
- Supports 256-level intensity grading and color temperature display modes.
- DigitaI trigger system.
- Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern and Video (HDTV supported).
- SeriaI bus triggering and decoder, supports l2C, SPI, UART, CAN, LIN (Standard) and CAN FD, FlexRay, l2S, and MIL-STD- 1553B (optional) protocols.
- Low background noise, features 0.5 mV/div to 10 V/div voltage scales.
- Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 90,000), according to trigger conditions set by the user.
- History waveform record (History) function for up to 90,000 triggered waveforms (frames).
- Automatic measurement function on 50+ parameters, supports statistics with histogram.
- Abundant data processing and analysis functions such as Search, Navigate, Mask Test, Bode plot, Power Analysis (optional) and Counter.
- Math measurement (2 Mpts FFT, +, -, x, ~, d/dt, f dt,f, average, ERES, and formula editor).
- Multiple interfaces: USB 2.0 Host × 2, USB 2.0 Device, LAN, External Trigger, Auxiliary output (TRIG OUT, PASS/FAIL).
- External mouse and keyboard support.
- Built-in web server supports remote control over the LAN port using a web browser.
- A waveform generator, a logic analyzer module and power analysis option for ripple and power quality measurements (optional).
SIglent SDS2000X Plus Specifications
It's a reasonably big & heavy box so postage isn't cheap.
Pickup available
Might be able to meet somewhere too
Accessories Included
Everything in original box
Condition of Item
As New
Payments Options
-
Paypal
-
Direct Deposit
-
Cheque
-
Cash
Postage - Freight
Buyer Pays
Estimated Postage
$ 72.00
-
