$ 399.00
Quantity Available
1
Posted
1 week ago
Description

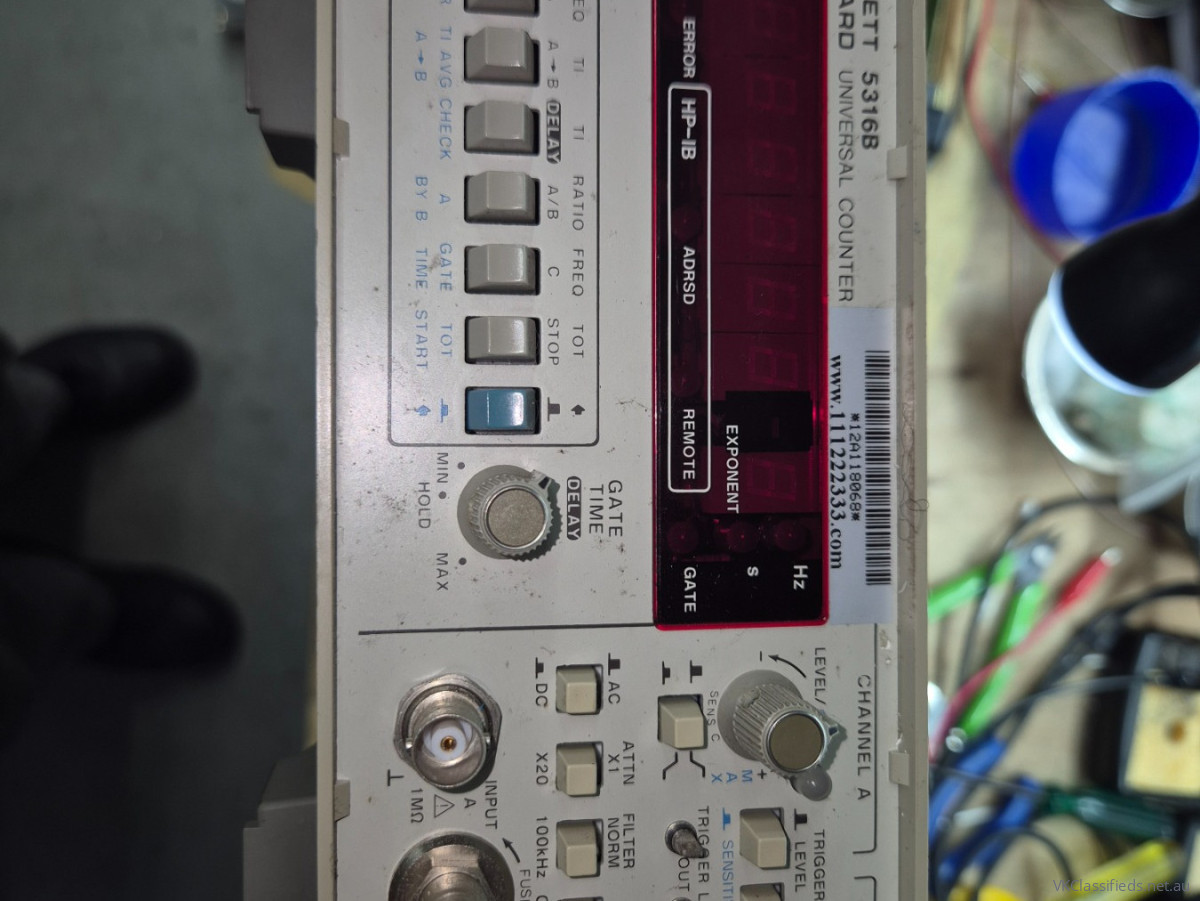

Surplus HP5316B fitted with high performance OCXO (0.01ppm) .
This versatile device is ideal for applications in fields such as business, industrial, and testing, providing accurate measurements and inspections. With its universal capabilities, the HP 5316B is a reliable tool for ensuring precise results in frequency counting tasks.
This versatile device is ideal for applications in fields such as business, industrial, and testing, providing accurate measurements and inspections. With its universal capabilities, the HP 5316B is a reliable tool for ensuring precise results in frequency counting tasks.
- Frequency Range: 0.1 Hz to 100 MHz
- Sensitivity: 10 mV
- Exceptional resolution at both low and high frequencies
- Three time-interval modes solve more problems
- Flexible signal conditioning optimized for both frequency and time-interval measurements
- Selectable gate time from 60 ms to 10 s
- 100 MHz A and B input channels, Optional 1 GHz C channel is fitted, but unverified.
- Full frequency range (to 100 MHz) on both input channels
- Proven reliability and excellent RFI protection
- Exceptional Resolution
- Below 10 MHz, the counter measures the input signal period, then computes and displays the reciprocal frequency with 7 digits of resolution in one second for signals as low as 0.1 Hz. Above 10 MHz, the counter automatically performs as a conventional counter.
- Three Modes
- Flexible Conditioning
- Choose AC or DC coupling, a sensitivity control (variable attenuator), and a switchable low-pass filter. Both channels have trigger level controls with easy setting
Condition of Item
Good
Payments Options
-
Paypal
-
Direct Deposit
-
Cheque
-
Cash
Postage - Freight
Buyer Pays
Estimated Postage
$ 34.00
-
