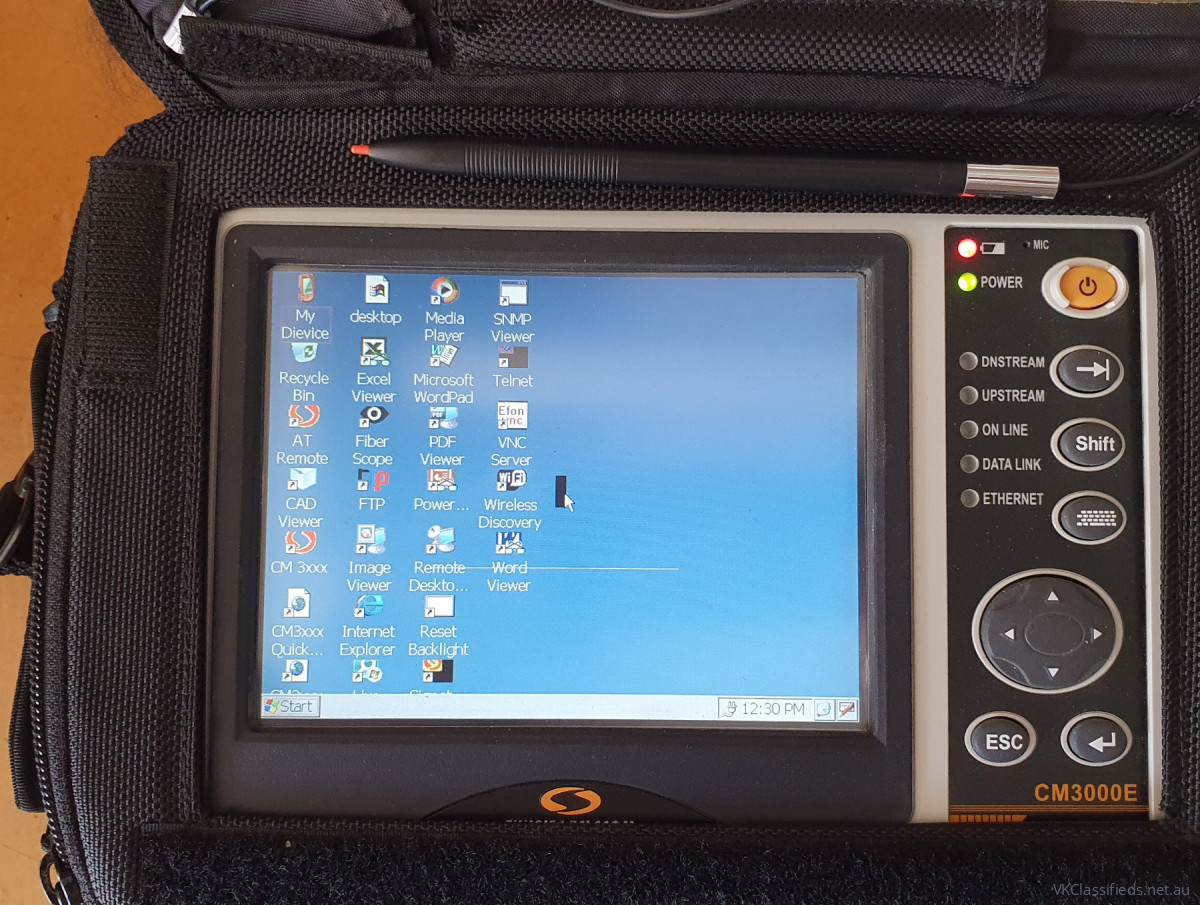

Sunrise Telecom CM3000E

Specifications:

• Frequency Range: 5 MHz to 1002 MHz

• Spectrum Analyzer:

  • Resolution Bandwidth (RBW): Typically around 30 kHz to 1 MHz

  • Dynamic Range: High dynamic range to detect low-level signals and interference

• Cable Modem Network Support:

  • DOCSIS Versions: 1.0, 1.1, 2.0, and 3.0 compliant

  • Channel Types: Downstream QAM, Upstream SC-QAM and SC-QPSK

• Modulation Analysis:

  • Measures MER (Modulation Error Ratio)

  • Measures BER (Bit Error Rate)

• Signal Measurements:

  • Signal Level: Measures upstream and downstream power levels

  • Signal-to-Noise Ratio (SNR)

• Ingress Analysis:

  • Ingress Noise Detection and Frequency Scanning

  • Interference Identification

• Display: Color LCD, typically 7-inch or similar size for clear visualization

• Connectivity: USB and Ethernet ports for data transfer and reporting

• Data Logging: Internal memory for test result storage, exportable via USB or Ethernet

• Battery: Rechargeable battery for field portability, with typical operation time of several hours

• Operating Temperature: Usually from 0°C to 45°C (check specific datasheet for exact range)

• Weight & Dimensions: Portable handheld design, weight approx. 3-4 kg depending on configuration

• Additional Features:

  • Intuitive user interface with graphical menus

  • Capability for field upgradeable software and firmware
