$ 2,750.00
Quantity Available
1
Posted
14 hours ago
Description
EOFY SPECIAL!! Legendary HP spectrum analyser with colour LCD!
A$2,750A$3,000 · In stock
Listed 15 weeks ago in Sydney, NSW
Details
-
ConditionUsed - Good

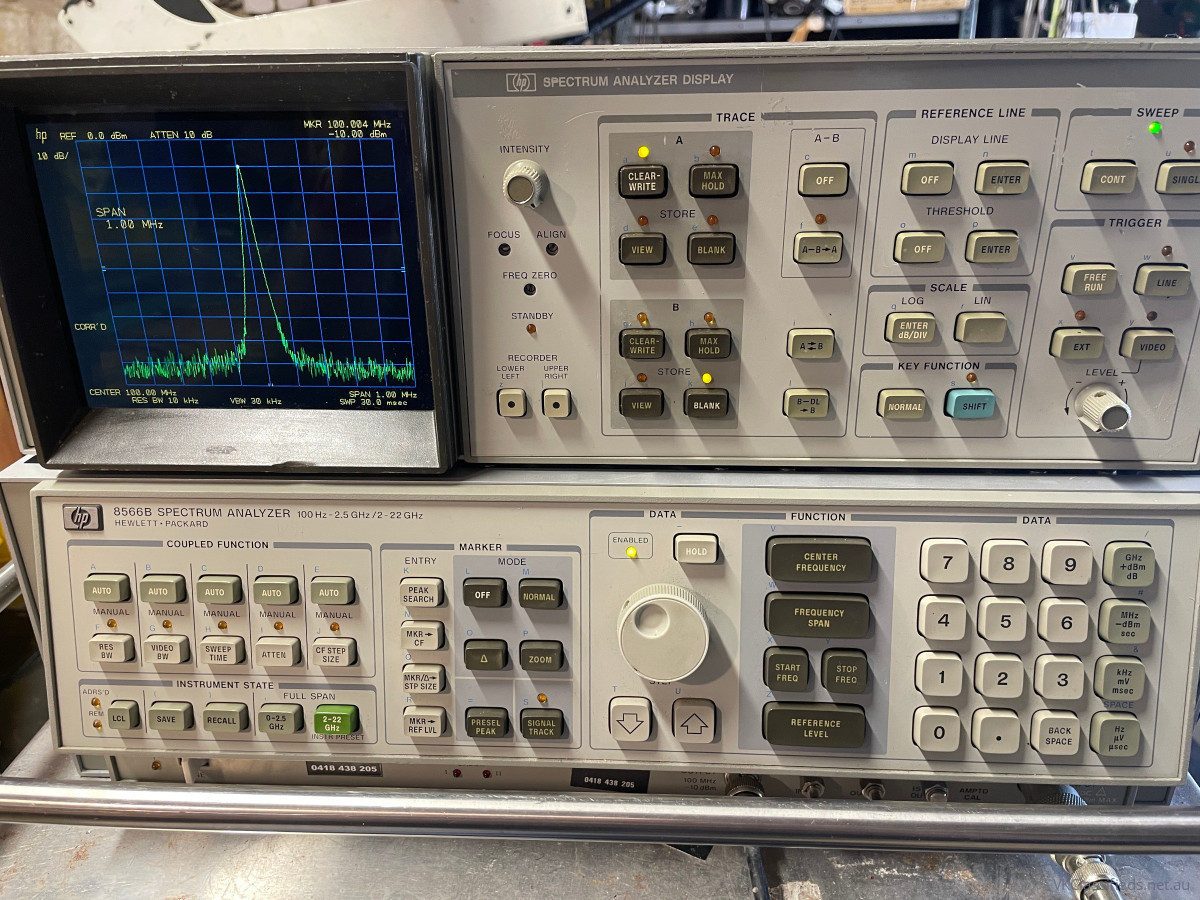

Flagship 22GHz spectrum analyzer made by Hewlett Packard. This unit has been upgraded with a colour LCD replacing the green CRT. The stepped attenuator has also been replaced. The 8566B Spectrum Analyzer is a high-performance analyzer ideal for bench or ATE applications with a frequency range from 100Hz to 22GHz extendable to 325GHz. A 10Hz resolution bandwidth and excellent frequency stability allow difficult measurements such as line-related sideband characterization at 22GHz. The 8566B Spectrum Analyzer has an amplitude range (dbm) of -134 to +30. Residual FM is <0.2Hz, frequency span <5kHz; <5Hz, frequency span <100kHz; <200Hz, frequency span <5MHz. It has 16 K bytes of RAM for custom user-defined measurement routines. Custom measurement programs can be created, either on an external controller or using the front-panel controls of the spectrum analyzer, and then stored in the non-volatile memory of the instrument. RF section S/N 2637A03784 Display section S/N 2403A07174
Sydney, NSW
Location is approximate
Seller information
Joined Facebook in 2011
Flagship 22GHz spectrum analyzer made by Hewlett Packard. This unit has been upgraded with a colour LCD replacing the green CRT. The stepped attenuator has also been replaced. The 8566B Spectrum Analyzer is a high-performance analyzer ideal for bench or ATE applications with a frequency range from 100Hz to 22GHz extendable to 325GHz. A 10Hz resolution bandwidth and excellent frequency stability allow difficult measurements such as line-related sideband characterization at 22GHz.
Accessories Included
Shown in pictures
Condition of Item
Excellent
Payments Options
-
Paypal
-
Direct Deposit
-
Cheque
-
Cash
Postage - Freight
Pickup Available
-
