I have owned this marvellous Anritsu Site Master Analyser since new and has had little use.
It measures Return Loss, VSWR, Cable Loss, of cable and antenna systems from 25 MHz to 4 GHz. Integrated Distance-To-Fault measurement can be used to locate the precise location of a fault within the feedline system. Can be used as a signal source for receiver testing. Included is a rechargeable battery or can be operated with the supplied 12.5 VDC power supply/charger. Also included is the original calibration tool.
Pickup available from 2212.
Performance Specifications.
Performance specifications are provided in Table 1-1. All specifications apply when calibrated at ambient temperature after a five minute warm up. Typical values are given for reference, and are not guaranteed.
Cable and Antenna Analyser.
Frequency Range: 25 MHz to 4000 MHz
Frequency Accuracy: < + 0r - 50 ppm @ +25°C
Frequency Resolution: 1 kHz (CW On) 100 kHz (CW Off)
Output Power: 0 dBm (typical)
Immunity to Interfering Signals: on-channel +17 dBm on-frequency –5 dBm
Measurement speed: < 2.5 msec / data point (CW ON)
Number of data points: 130 or 259 or 517
Return Loss:
Range: 0.00 to 60.00 dB
Resolution: 0.01 dB
VSWR:
Range: 1.00 to 65.00
Resolution: 0.01
Cable Loss:
Range: 0.00 to 30.00 dB
Resolution: 0.01 dB
Measurement Accuracy: > 42 dB corrected directivity after calibration
Distance-To-Fault
Vertical Range:
Return Loss: 0.00 to 60.00 dB
VSWR: 1.00 to 65.0 Horizontal Range: 0 to (# of data pts –1) x Resolution to a maximum of 1497m (4911 ft) # of data pts = 130 or 259 or 517
( Horizontal Resolution (rectangular windowing):
Resolution (meters) = (1.5 x 108 ) x (Vp)/DF
Where Vp is the relative propagation velocity of the cable and DF is the stop frequency minus the start frequency (in Hz).
It measures Return Loss, VSWR, Cable Loss, of cable and antenna systems from 25 MHz to 4 GHz. Integrated Distance-To-Fault measurement can be used to locate the precise location of a fault within the feedline system. Can be used as a signal source for receiver testing. Included is a rechargeable battery or can be operated with the supplied 12.5 VDC power supply/charger. Also included is the original calibration tool.
Pickup available from 2212.
Performance Specifications.
Performance specifications are provided in Table 1-1. All specifications apply when calibrated at ambient temperature after a five minute warm up. Typical values are given for reference, and are not guaranteed.
Cable and Antenna Analyser.
Frequency Range: 25 MHz to 4000 MHz
Frequency Accuracy: < + 0r - 50 ppm @ +25°C
Frequency Resolution: 1 kHz (CW On) 100 kHz (CW Off)
Output Power: 0 dBm (typical)
Immunity to Interfering Signals: on-channel +17 dBm on-frequency –5 dBm
Measurement speed: < 2.5 msec / data point (CW ON)
Number of data points: 130 or 259 or 517
Return Loss:
Range: 0.00 to 60.00 dB
Resolution: 0.01 dB
VSWR:
Range: 1.00 to 65.00
Resolution: 0.01
Cable Loss:
Range: 0.00 to 30.00 dB
Resolution: 0.01 dB
Measurement Accuracy: > 42 dB corrected directivity after calibration
Distance-To-Fault
Vertical Range:
Return Loss: 0.00 to 60.00 dB
VSWR: 1.00 to 65.0 Horizontal Range: 0 to (# of data pts –1) x Resolution to a maximum of 1497m (4911 ft) # of data pts = 130 or 259 or 517
( Horizontal Resolution (rectangular windowing):
Resolution (meters) = (1.5 x 108 ) x (Vp)/DF
Where Vp is the relative propagation velocity of the cable and DF is the stop frequency minus the start frequency (in Hz).
Accessories Included

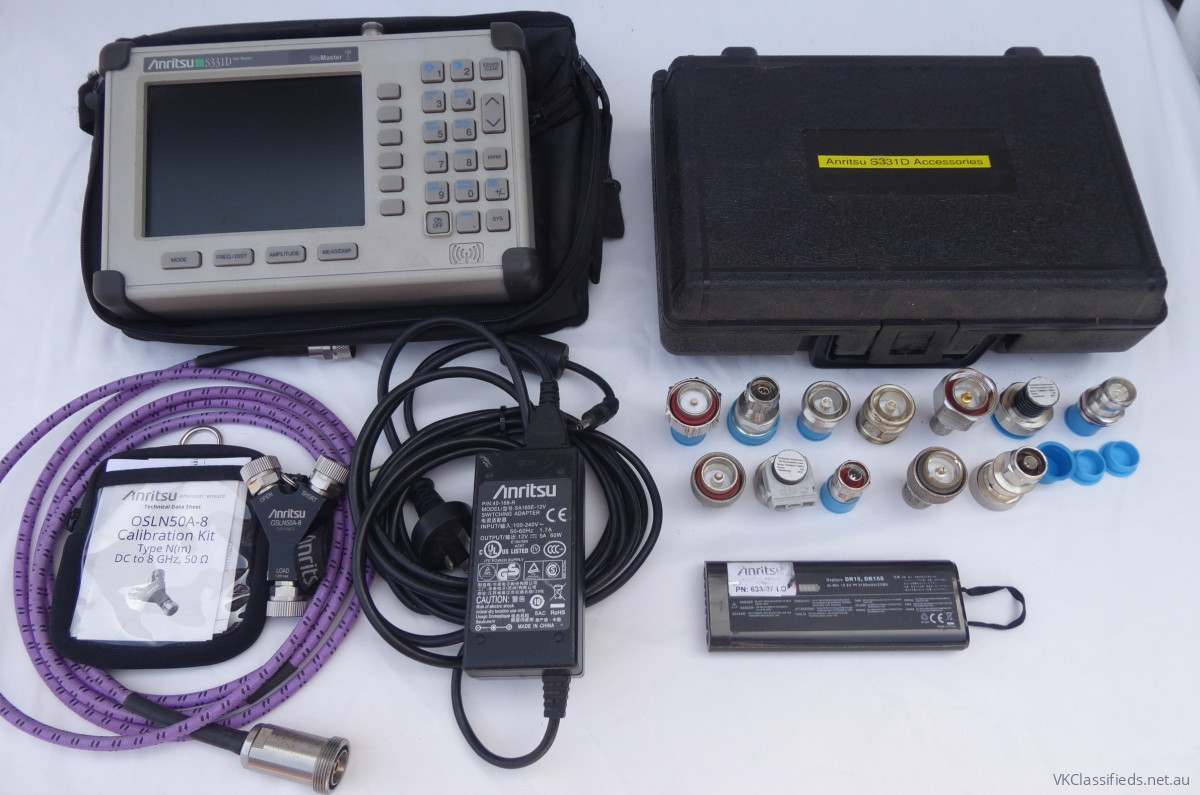

Shown in pictures
Condition of Item
Excellent
Payments Options
-
Paypal
-
Direct Deposit
-
Cheque
-
Cash
Postage - Freight
Buyer Pays
Estimated Postage
AUD 40.00
-
