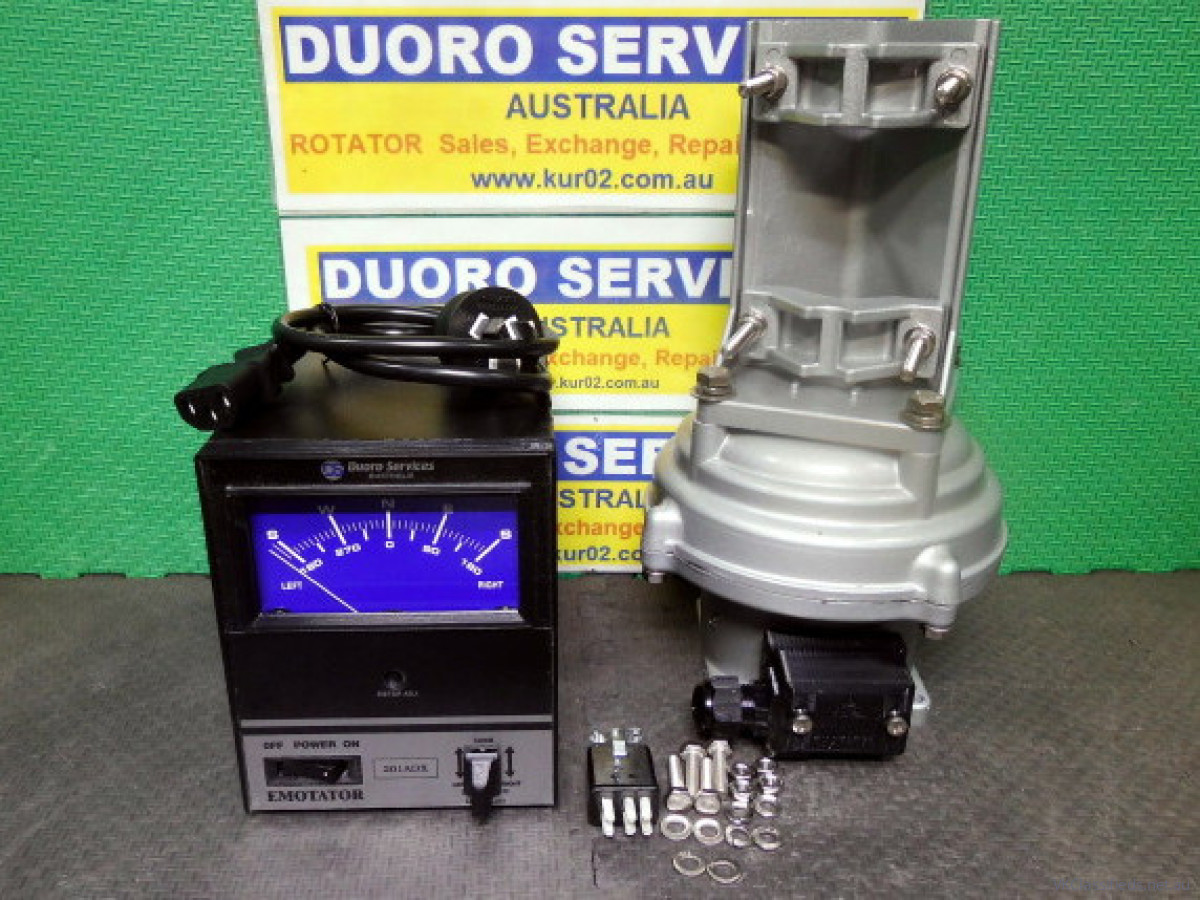

EMOTATOR 201 ADX Dual Speed Rotator Set

Fully Refurbished & Upgraded Rotator Set With Dual Speed Controls.
Includes Top mast clamp, S/S mounting & clamping Hardware, Plug for control cable & revised manual

Wind Area ...............0.7m Sq.

Rotation Torque ..... 2.0 - 4.0 Kg/m

Brake Torque ......... 15 Kg/m

Mast Size ................ 32 ~ 62mm

Rotation Time ....... .80 -45 second 360 degree

Rotator Voltage ..... 24vDC

Controller Input.......240vAC

Controller Output....Dual Speed 15vDC (Low) 26vDC (High)

Rotator Weight........3.0Kg.

Rotator Colour.........Silver

Warranty...................24 month

The ADX Controller:-  Panel direction display with 2 speed (Low/High) momentary & lift to lock direction switch.

Disassembled, cleaned & prep chassis for new upgrade parts etc

All NEW 3D printed front panel with M3 brass threaded inserts for all mounting points.

The front panel also has a new decal & new twin front to back bracing straps.

A new direction switch knob was also 3D printed.

 The Back Panel:-  Installed new a new 6 pin CINCH socket & laser cut S/S cover/mounting plate, New fused IEC socket & earth bolt.

On the inside:- Added an extra 12v transformer for the display & reconfigured the original 11 - 18v transformer to feed a new dual voltage PCB, which powers the new dual stage (Low / High) direction switches. The faulty original direction display panel meter was replaced with one from a CXX controller & upgraded the direction display with new decal. The original display PCB was replaced with one of my NEW DS-3p PCB's, which has the LED power supply on board to power new 3 LED module for display illumination. Fully rewired, most terminated with Plug/Sockets to make it easy to work on.

Fully tested & aligned with the 201 rotator.

 The 201 Rotator : - Has a 24v DC motor with a BK brake assembly mount on top of it.

Disassemble to the last nut, bolt & screw. Cleaned all parts & checked for damage.

Replaced the original 24vDC motor with newer version, Replaced the limit switches & upgraded the reverse Diodes. Replaced the original 600 ohm POT with a 500 ohm version to suit the replacement DS-3p PCB in the controller.

All housings, mast bracket & mast clamp were glass bead blasted followed by etch priming & then painted in silver hammer tone enamel paint.

Reused the original screw terminal block (but replaced the screws with newer versions). Replaced the original damaged terminal cover with a NEW 3D printed version with a proper cable gland.

The gears shafts were affixed into the lower gear chassis & a new upper gear plate was manufactured. The gears were aligned & shimmed into the lower chassis then installed into the refurbished housings with new ball bearing & grease through out.

Aligned & calibrated to the ADX controller.

Supplied with upper mast clamp, S/S mounting & clamping hardware.

240v AC, 24 month warranty.

This unit is available for exchange. See my wed site for details.
Please contact Peter of Duoro Services via the email service provided by VK
