TE-33 - Tri-Band Yagi 10,15 & 20m

TE-33 - Tri-Band Yagi 10,15 & 20m

We keep a large range of TET Emtron HF base antennas in stock on the east coast (and we can ship from WA as well if required).
For other antennas and parts in stock, see https://comtekradio.com.au/brands/tet-emtron/

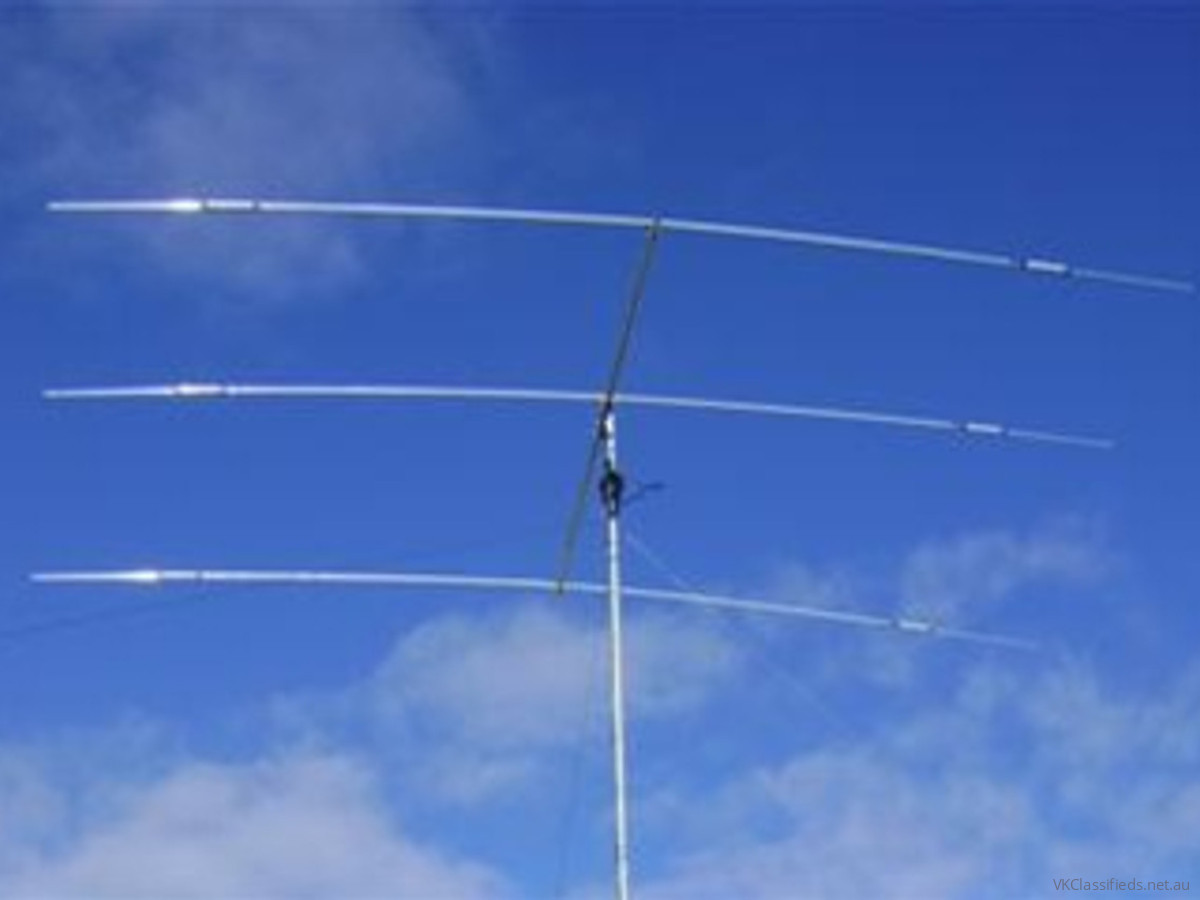

The “TET-Emtron TM” model TE-33 is an optimum performance 3 element HF Beam Antenna. Built with high efficiency traps, all stainless steel hardware and rugged aluminium construction, guarantee a long and trouble-free operation.

As trap type antennas are generally considered narrow banded, the TE-33 gives an SWR of 1.5 or less across the entire operating band, and therefore does not need any re-adjusting for PHONE or CW band.

This antenna is made from Marine Grade 6000 Series Aluminium, all predrilled and partly pre-assembled components – THIS ANTENNA IS MADE TO LAST!

By following the instruction, you will find that the antenna is simple to assemble and when correctly installed, a top performer.

SPECIFICATIONS


• FREQUENCY: 14, 21, 28 MHz
• MAX. ELEMENT LENGTH: 7.58 m
• BOOM LENGTH: 4.3 m
• GAIN dBi: 8/ 8.2/ 9
• FRONT TO BACK RATIO: 21/ 15/ 16 dB
• FEED IMPEDANCE: 50 OHM
• TURNING RADIUS: 4.5 m
• WEIGHT: 12 kg
• Surface Area: .58m
• Wind Loading: 56.7kg@ 130 kmh
