Sea Com 40D Clubphone AM Marine Radio Tx/Rx

EXPRESSIONS of INTEREST are sought for a nice Sea Com 40D Clubphone AM Marine Radio Transceiver by Amalgamated Telecommunications Aust (ATA) of Brisbane.

Features:

Diecast enclosure: 190 x 190 x 70 mm (approx).

Separate PCBs: Rx; Tx Xtal Osc. & Modulator; Tx driver & Tx PA

Rx: Ceramic filters for improved selectivity in the IF stage

Tx: driver (MRF406); Push-Pull PA (MRF406 x2)

Aerial matching: adjustable loading control.

Frequency Channels: 3 switched channels

Frequency band: has the original 2 MHz channels/Xtals. Similar radios have been set up on 160M & other bands.

Aerial Connection: Screw terminal & BNC socket.

Microphone: hard-wired

Power requirements: 12 volts DC (P/S cable needs replacement)

Condition: Rx generates noise in the speaker; Components appear to be original; a very clean & tidy unit.

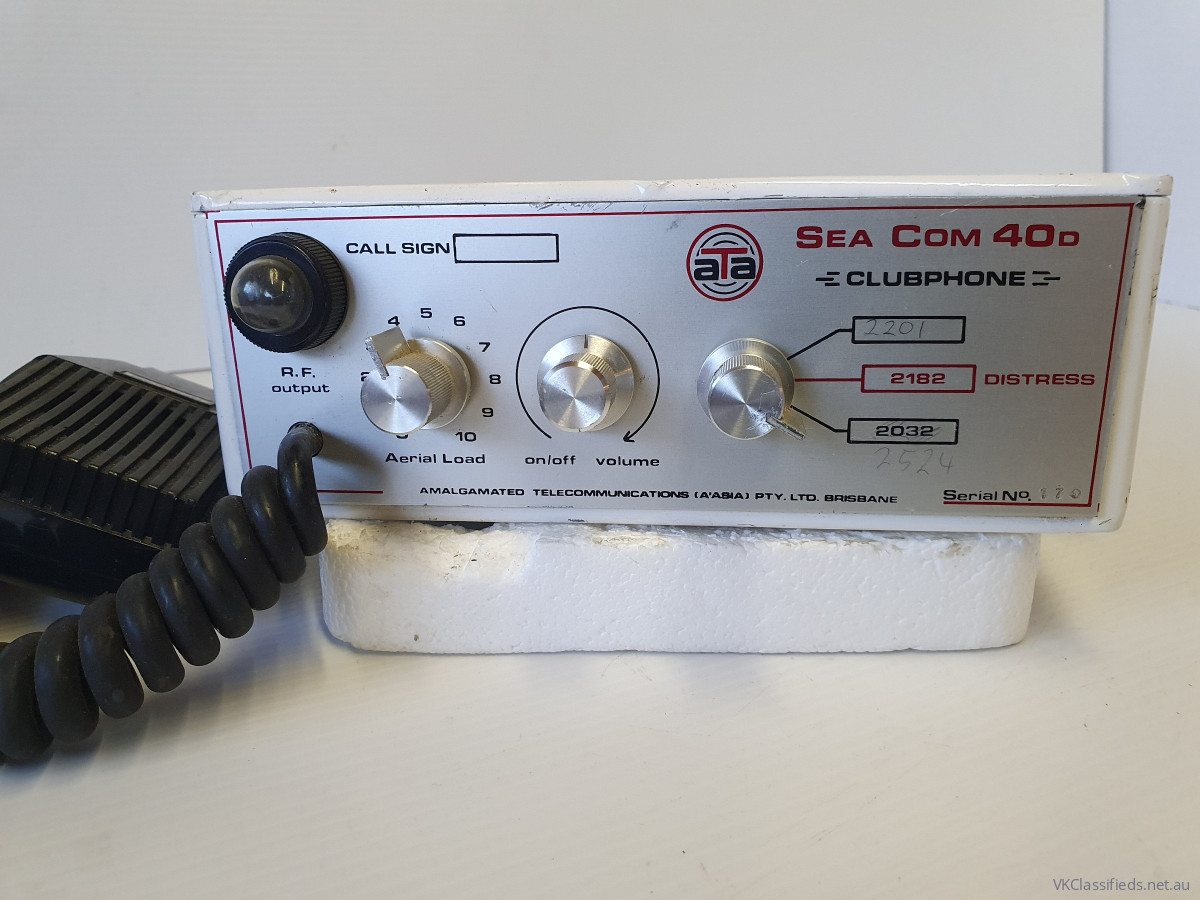

Review the attached photographs.

LOCAL PICK-UP preferred from Brisbane north-side – Otherwise, buyer pays for postage.

*** More items from the DECEASED ESTATE will be listed as time permits. Log-in and click on OTHER LISTINGS to view all items. ***

Thank you for your interest in this item.
