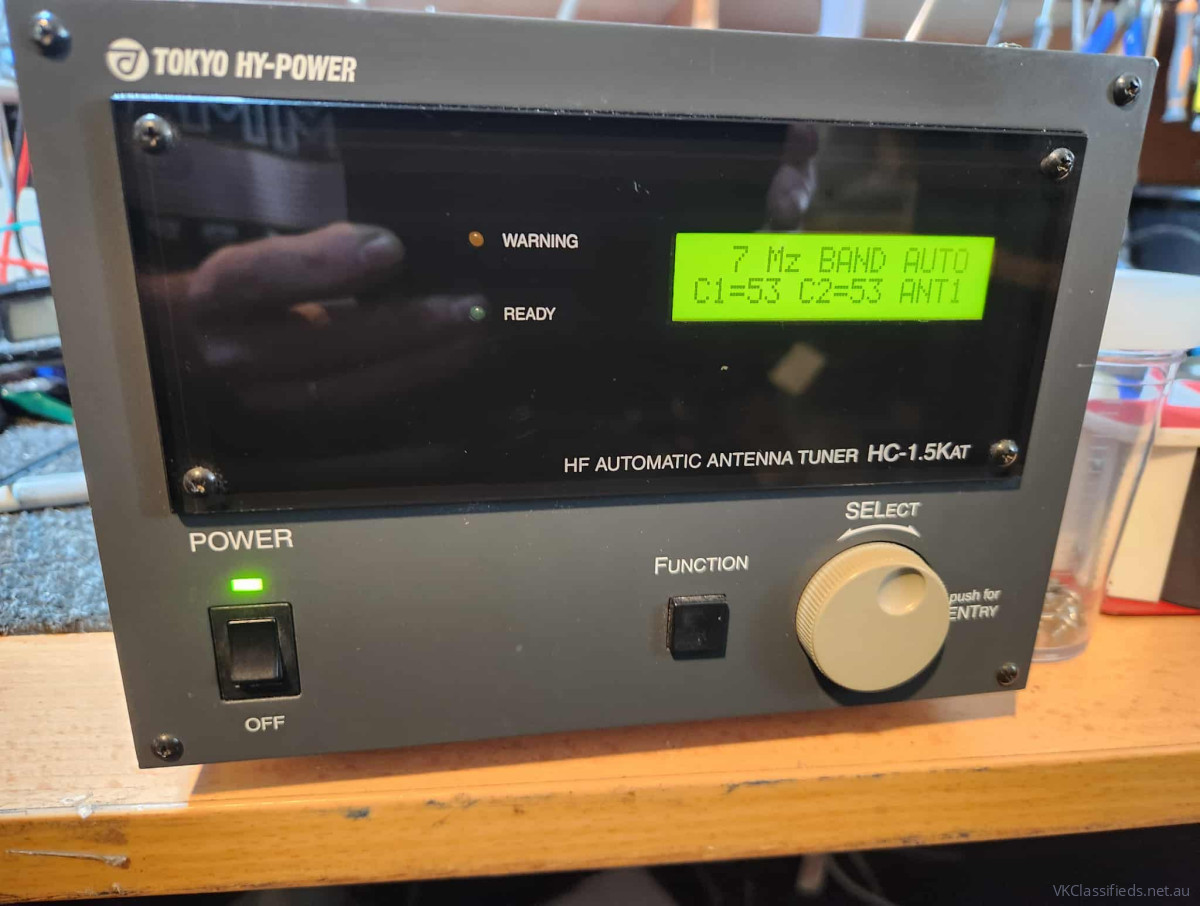

Rare Tokyo Hypower HC-1.5KAT 160m to 10m Autotuner

HC-1.5KAT Tokyo Hy-Power HF auto antenna tuner 1.8-29.7MHz 1.5KW

Features:

Designed to fully integrate with the HL-2.5Kfx and 1.5Kfx amplifiers.

“ONE BUTTON TUNING” Complete Automatic Band Switching and Tuning
Tuner can be used in automatic or manual modes.

Tuner is compatible with other amplifiers when used in manual mode.
Automatic amplifier keying line disable when in tuning mode.

High Speed / High Accuracy Stepper Motors with typical tuning times of 1 second

Advanced 16 bit microprocessor for functional control and tuning

Specifications:

Frequency Range 1.8 ~ 29.7 MHz
Output Impedance Range 12.5 ohms – 200 ohms
Maximum Power Capability 1.5kW SSB/CW – RTTY 1kW
Input Impedance 50 ohms
Tuning Power 50W ( 80W max )
Tuning Time Typically 1 second

Worst case scenario 2.5 seconds with rare instances of 4 seconds
External Power Required 12Vdc / 1500ma
Power Consumption
(Tuning mode) 1500ma
Power Consumption (Standby) 750ma
Maximum SWR after tuning <1.5:1
Circuit Type T – Shaped Network
Cooling Forced Air

Stepper Motor resolution .25 per step 1440 steps
Dimensions 8” W x 5.6” H x 12” D
Weight 11 lbs

$1650 plus post,

email brenton@posnav.com.au
