Fireco Telescopic Pneumatic Mast 5.87m

I am selling my pneumatic mast and air compressor. The mast uses compressed air to raise the mast. It can be raised and lowered by using the supplied switch, or wirelessly using an iPhone/Android/Windows app. It can handle a top load of up to 50kg and wind speeds of 125km/h.

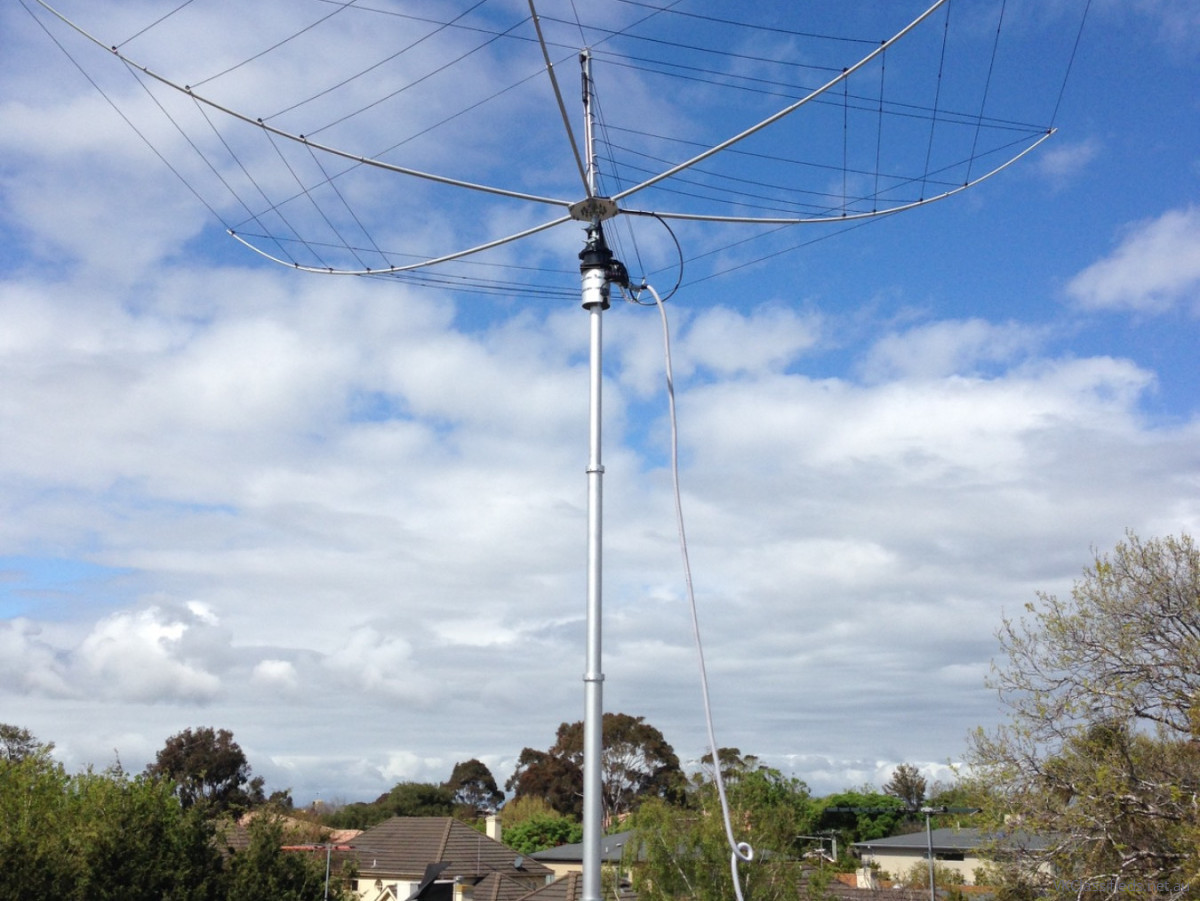

I used this mast with a Yaesu G-1000 rotator and various antennas including K4KIO Hexbeam and 3-el Ultrabeam, no guy wires required. It can be mounted on a vehicle, caravan, or trailer as it only weighs 26kg. Perfect for portable operation. Ideal for radio clubs wanting a portable mast.

The mast is manufactured in Italy and is a current model sold by EVTA Group in Gisborne, Victoria. It was purchased in 2015 and is fully supported by them. It is in excellent condition with only a few superficial scratches on the outside of the mast.

It has been fully checked and serviced by EVTA in April 2025.

Model: Fireco CS.3520.NUS Standard (Medium)

5-section with internal cables, high-strength aluminium

Serial number: 62220/Y15

Extended height: 5.872m

Retracted height: 1.745m

External diameter: 115mm

End cap diameter: 164mm

Max. Air pressure: 2.5bar

Weight: 25.7kg

Max. Top load: 50kg

Max. Wind speed: 125km/h with max. surface area of 0.5 sq m

The mast has the internal wiring option (inc. Cat5e, 50 and 75ohm coax cables) that can be used for the antenna, rotator wiring etc.

There is also a micro-switch located on the mast that indicates extended or retracted.

Includes:

Fireco pneumatic mast

Fireco 12VDC 9amp air compressor 50l/min (AI.32141) with corded remote control

Several meters of air tube

Base bracket (BK.30106)

2 x fixing brackets (BK.30206)

Internal wiring: 8 x 18AWG + 4 x 24AWG + 1 x Cat5e + 1 x 50ohm coax + 1 x 75ohm coax.

Fitted with extra strong mast guide keys to eliminate twist.

Full documentation including wiring diagrams, schematics, certifications, original invoice.

Also available is a wireless control box that allows mast raising and lowering using an iPhone/Android/Windows app. This box includes 12VDC power supply (MeanWell HRP-600-12), GlobalCache iTach wireless switch (IR2CC), LED’s, relays etc.

You can see it in operation here:

https://www.youtube.com/watch?v=ZHwJ1mh2xRw

Current new price is over $7300.

Remote box additional $450

Located in Brighton, VIC, 3186.

I can ship at buyers expense.
