$ 2,200.00
Quantity Available
2
Posted
15 hours ago
Description
Hi
Specifications:
- Max wind load area 3.9 m²
- Braking torque 5.755Kgcm = 564Nm
- Rotating torque 3500Kgcm = 343Nm
- Max vertical load 850Kg
- Motor voltage 12 VDC
- Rotating range 500° (70+360+70)
- Rotation speed ~100 seconds for 360°
- Reading accuracy ~1% no backlash
- Antenna mast OD 40-80mm
- Operational temperature range (°C): rotor unit -40° ÷ +60°
control box -20° ÷ +60°
- Storage temperature (°C): rotor unit -40° ÷ +70°
control box -25° ÷ +60°
- Weight (rotator only) ~ 20 kg
I have two brand‑new PST‑61D rotators for sale (rotators only, no controllers). I originally purchased four directly from Italy in 2022. Two are now in service, and I no longer need the spare pair.
These are serious BIG BOY toys — worm‑gear driven and absolutely top of their class. I run mine with EA4TX digital controllers, which pair beautifully with them.
$2200 each. No offers.

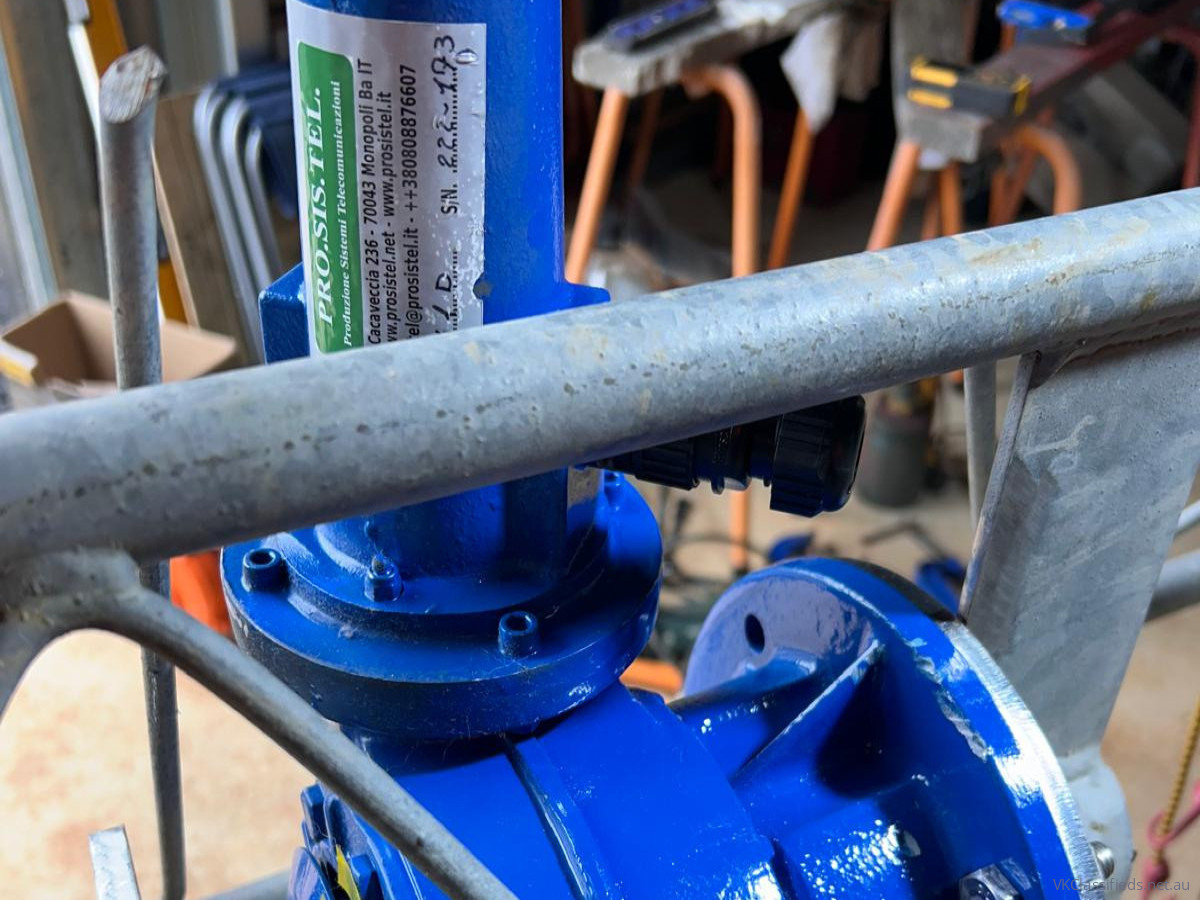

Note: The photos shown are of the units I have installed.
PST‑61D can be fitted to Nally towers with only minor modification to the top section see the photos for reference.
They’re heavy units, shipping will be at the buyer’s cost.
73 Ras VK2QV
Specifications:
- Max wind load area 3.9 m²
- Braking torque 5.755Kgcm = 564Nm
- Rotating torque 3500Kgcm = 343Nm
- Max vertical load 850Kg
- Motor voltage 12 VDC
- Rotating range 500° (70+360+70)
- Rotation speed ~100 seconds for 360°
- Reading accuracy ~1% no backlash
- Antenna mast OD 40-80mm
- Operational temperature range (°C): rotor unit -40° ÷ +60°
control box -20° ÷ +60°
- Storage temperature (°C): rotor unit -40° ÷ +70°
control box -25° ÷ +60°
- Weight (rotator only) ~ 20 kg
Accessories Included
Everything in original box
Condition of Item
Unopened
Payments Options
-
Paypal
-
Direct Deposit
-
Cheque
-
Cash
Postage - Freight
Buyer Pays
Estimated Postage
$ 100.00
-
