You are bidding on one RAAF Balun labelled Matching Unit, MU-1, with Ident. Y10A/501149. There are 2 .

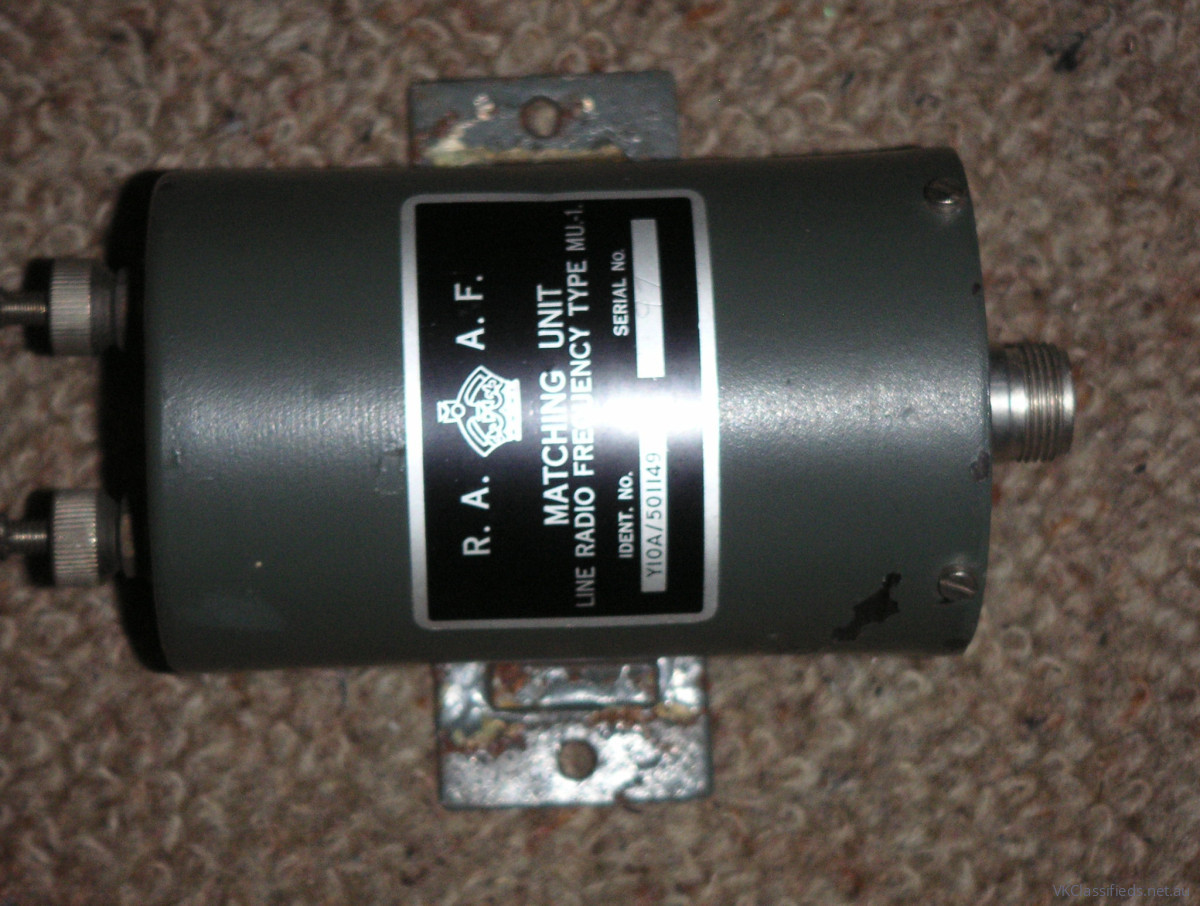

It has 75 Ohm input and 200 Ohm output - see photos.
There is continuity between the 75 and 200 Ohm sides. So, I suspect it's a Ruthroff or Guanella design - multi-turn coaxial cable over a ferrite core – rather than an isolated transformer design.
I have not used or even opened it; so, I can't comment on frequency range or power-handling capacity.
The 75 Ohm side is unbalanced: a female, chassis-mounted N-type connector; the 200 Ohm side is balanced: two screw-down, open-wire terminals.
All original equipment manufactured components are present. The only shortcoming is that some of the mil green paint has peeled off and there is some rust on the mounting bracket.
You can
I had a specific antenna to feed. With a 75 Ohm input, I had to design and build a 50 to 75 Ohm Unbal-to-unbal because all my equipment is designed for 50 Ohm input / output. Instead, I designed and built my own Baluns for 50 Ohm coaxial input. So, these RAAF Baluns are unused, effectively new and available.
