AUD 250.00
Quantity Available
1
Posted
2 months ago
Description

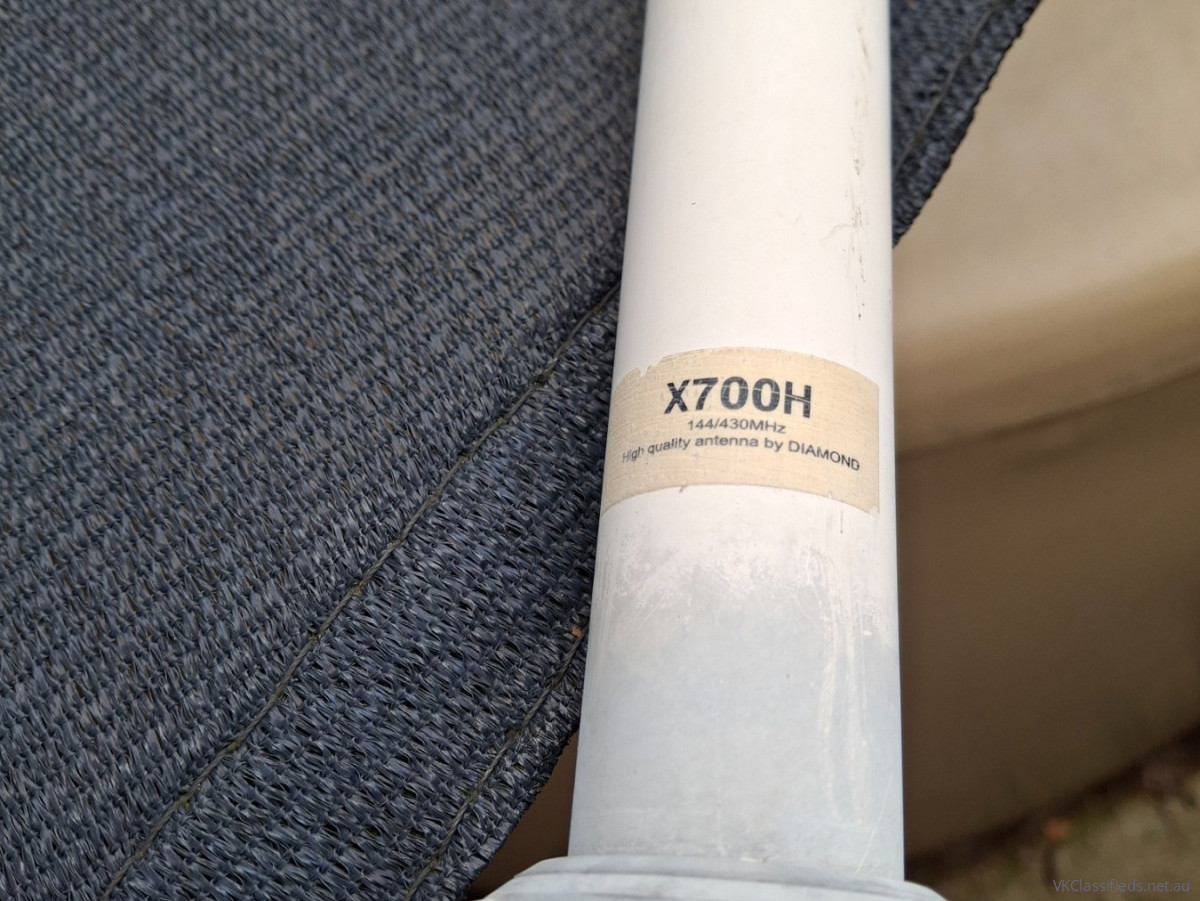

X700H/X700HN: 144/430MHz(2m/70cm) in VGO with environmental exposure minor coating. Fiberglass radome not cracked or damged
Complete with original package and install instructions, mounting kit
Summary
Length:7.2m / Radial length:approx.52cm / Weight:3.8kg
Gain:9.3dB(144MHz),13.0dB(430MHz) / Max.power rating:200W (Total)
Impedance:50ohms / VSWR:Less than 1.5:1 / Rated wind velocity:40m/sec
Mast diameter accepted:30mm to 62mm(More than 45mm diameter mast is recommended) / Connector:N type X700HN)
Type:4x5/8wave C-Load(144MHz),11x5/8wave C-Load(430MHz),FRP outershell
Description
X-700H: The Diamond X-700H 2m/70cm base station vertical is a highly reliable antenna for amateur radio enthusiasts. Constructed with fibreglass, it ensures durability and longevity. Additionally, it comes pre-tuned and fully weatherproofed, making it suitable for various weather conditions. The package also includes mast mounting brackets for easy installation .
With frequency bands of 2m/70cm, this antenna offers versatile coverage for both VHF and UHF transmissions. It boasts a gain of (9.3 for VHF / 13dB for UHF ), allowing for improved signal reception and transmission. The X-700H can handle power up to 200W, ensuring efficient performance. With its impressive specifications and convenient installation options, it is a valuable addition to any radio station setup. The antenna was tested in strong winds – no signal “wave” effect. It certainty does bend and flex however in 40+ kph wind - as expected.
Features:
Fiberglass radomes
Overlapping outer shells for added strength
Strong waterproof joint couplings
Stainless steel hardware
Wide band performance
Factory adjusted – no tuning required
High wind rating
DC grounded
Specifications:
Frequency: 2/70 cm
Radial length: approx.52 cm
Gain: 9.3dB (144MHz),13.0dB (430MHz)
Max. power rating: 200W (Total)
VSWR: Less than 1.5:1
Rated wind velocity: 40m/sec
Mast diameter: 30mm to 62mm (More than 45mm diameter mast is recommended)
Connector: N type socket
Impedance: 50 Ohms
Length: 7.2m
Weight: 3.8kg
Type: 4 x 5/8 wave C-Load on (144MHz), 11 x 5/8 wave C-Load on (430MHz),
FRP outershell
Local pick up or arrange your own pick up delivery. This item exceeds AustPost max length of 105 cm
Alternate courier may pick up and deliver
Complete with original package and install instructions, mounting kit
Summary
Length:7.2m / Radial length:approx.52cm / Weight:3.8kg
Gain:9.3dB(144MHz),13.0dB(430MHz) / Max.power rating:200W (Total)
Impedance:50ohms / VSWR:Less than 1.5:1 / Rated wind velocity:40m/sec
Mast diameter accepted:30mm to 62mm(More than 45mm diameter mast is recommended) / Connector:N type X700HN)
Type:4x5/8wave C-Load(144MHz),11x5/8wave C-Load(430MHz),FRP outershell
Description
X-700H: The Diamond X-700H 2m/70cm base station vertical is a highly reliable antenna for amateur radio enthusiasts. Constructed with fibreglass, it ensures durability and longevity. Additionally, it comes pre-tuned and fully weatherproofed, making it suitable for various weather conditions. The package also includes mast mounting brackets for easy installation .
With frequency bands of 2m/70cm, this antenna offers versatile coverage for both VHF and UHF transmissions. It boasts a gain of (9.3 for VHF / 13dB for UHF ), allowing for improved signal reception and transmission. The X-700H can handle power up to 200W, ensuring efficient performance. With its impressive specifications and convenient installation options, it is a valuable addition to any radio station setup. The antenna was tested in strong winds – no signal “wave” effect. It certainty does bend and flex however in 40+ kph wind - as expected.
Features:
Fiberglass radomes
Overlapping outer shells for added strength
Strong waterproof joint couplings
Stainless steel hardware
Wide band performance
Factory adjusted – no tuning required
High wind rating
DC grounded
Specifications:
Frequency: 2/70 cm
Radial length: approx.52 cm
Gain: 9.3dB (144MHz),13.0dB (430MHz)
Max. power rating: 200W (Total)
VSWR: Less than 1.5:1
Rated wind velocity: 40m/sec
Mast diameter: 30mm to 62mm (More than 45mm diameter mast is recommended)
Connector: N type socket
Impedance: 50 Ohms
Length: 7.2m
Weight: 3.8kg
Type: 4 x 5/8 wave C-Load on (144MHz), 11 x 5/8 wave C-Load on (430MHz),
FRP outershell
Local pick up or arrange your own pick up delivery. This item exceeds AustPost max length of 105 cm
Alternate courier may pick up and deliver
Accessories Included
Everything in original box
Condition of Item
Very Good Condition
Payments Options
-
Paypal
-
Direct Deposit
-
Cheque
-
Cash
Postage - Freight
Pickup Available
-
