WX0B SixPak 6x2 Antenna Switch incl Controller

ARRAY SOLUTIONS (WX0B) 6 x 2 SixPak dual radio antenna switch incl controller.

Two radios can share six antenna ports. Interlock system won't allow one radio select an antenna port already taken by the other radio while providing high isolation. It is engineered for extremely low crosstalk between ports, which is critical for SO2R (Single Operator - Two Radios) or multi-operator contest stations.

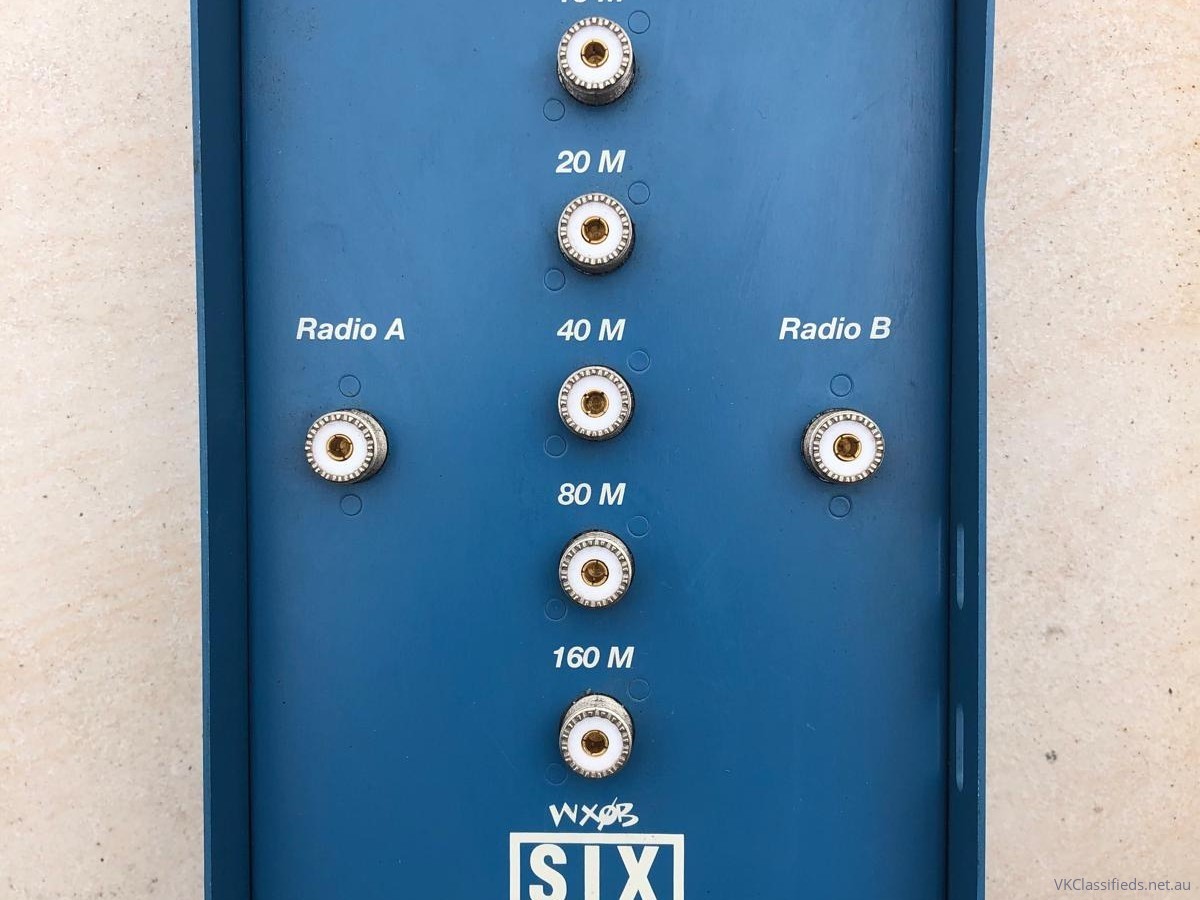

Consists of a relay unit (can be mounted outside) and a control head located in the radio shack. Comes with 4.5m control cable.

The dual rotary controller is a standard manual controller with two rotary switches (one for each radio) and 12 LEDs to indicate current antenna assignments

SixPak is in excellent (as new) condition, used only a few times inside shack.

- Frequency Range 1.8 MHz to 54 MHz

- Power rating up to 5kW

- Six antennas shared by two radios.

- Safety interlocked to protect radios

- Saves on hard-line if used on the tower

- High isolation between radios to avoid interference

- Teflon SO-239 connectors for reliability

- Extremely low insertion loss

- Can be controlled from Automatic band decoders with 12 V DC outputs

- Dimensions relay box: 292 mm x 152 mm x 89 mm, 2.95 kg

- Dimensions control box: 76 mm x 152 mm x 76 mm, 0.454 kg
