$ 90.00
Quantity Available
1
Posted
4 hours ago
Description

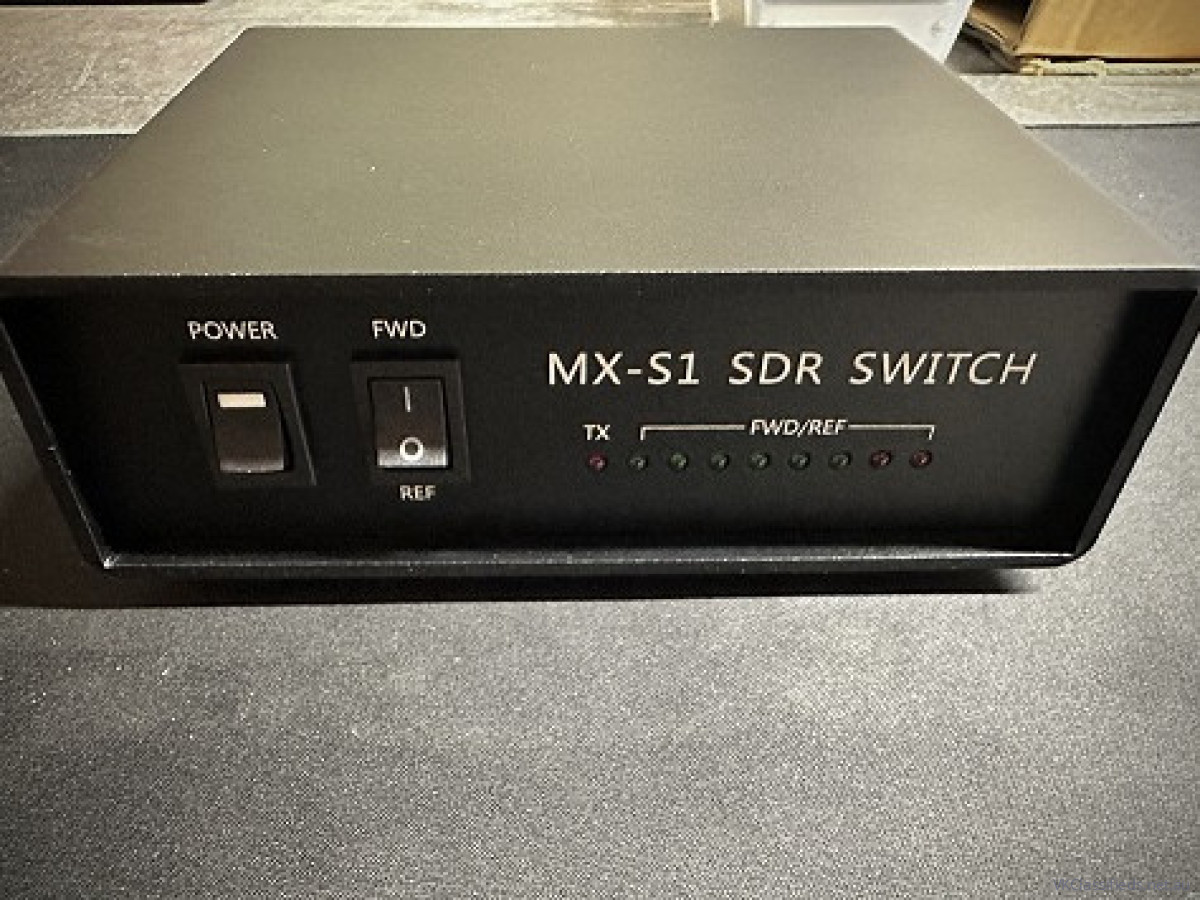

MX-S1 - 100W DC-60Mhz SDR Switch with all Cable Connection & Accessories
The MX-S1 DC-60Mhz SDR Switch SDR TX/RX Switch Adds a Spectrum Display to Your Old Transceiver
Description:
A SDR receiver and a transceiver without spectrum can be connected via the SDR Switch to enable spectrum display. At the same time, it has forward and reverse power indication functions, which makes it easier to adjust your antenna.
The Switch allows the SDR receiver and the traditional shortwave transceiver to share an antenna. When the SW transceiver transmits, the antenna loop of the SDR receiver is disconnected synchronously so that it can realize rich spectrum display.
Specifications:
- Frequency range: DC-60Mhz
- Maximum power: 100W
- Insertion loss: 0.3DB
- Working voltage: 12V (10V-15V)
- Working current: < 100MA
- SWR: ≤ 1.5
- Interface: SL16
- Weight: 700G/1.5LB
- Dimentions: 150 x 130 x 50mm
Postage (Regular) inc tracking within Australia $15.00
Postage Express inc tracking within Australia $18.00
The MX-S1 DC-60Mhz SDR Switch SDR TX/RX Switch Adds a Spectrum Display to Your Old Transceiver
Description:
A SDR receiver and a transceiver without spectrum can be connected via the SDR Switch to enable spectrum display. At the same time, it has forward and reverse power indication functions, which makes it easier to adjust your antenna.
The Switch allows the SDR receiver and the traditional shortwave transceiver to share an antenna. When the SW transceiver transmits, the antenna loop of the SDR receiver is disconnected synchronously so that it can realize rich spectrum display.
Specifications:
- Frequency range: DC-60Mhz
- Maximum power: 100W
- Insertion loss: 0.3DB
- Working voltage: 12V (10V-15V)
- Working current: < 100MA
- SWR: ≤ 1.5
- Interface: SL16
- Weight: 700G/1.5LB
- Dimentions: 150 x 130 x 50mm
Postage (Regular) inc tracking within Australia $15.00
Postage Express inc tracking within Australia $18.00
Accessories Included
Shown in pictures
Condition of Item
As New
Payments Options
-
Paypal
-
Direct Deposit
-
Cheque
-
Cash
Postage - Freight
See Advert Text
Estimated Postage
$ 15.00
Contact Details
Amateur Callsign
VK3GBE
Country
Australia
State/Region/Province
Victoria
City
Nunawading
Post Code
3131
