$ 1,100.00
Quantity Available
1
Posted
5 hours ago
Description
As new, used only for a month and put in storage
RRP $1499.00

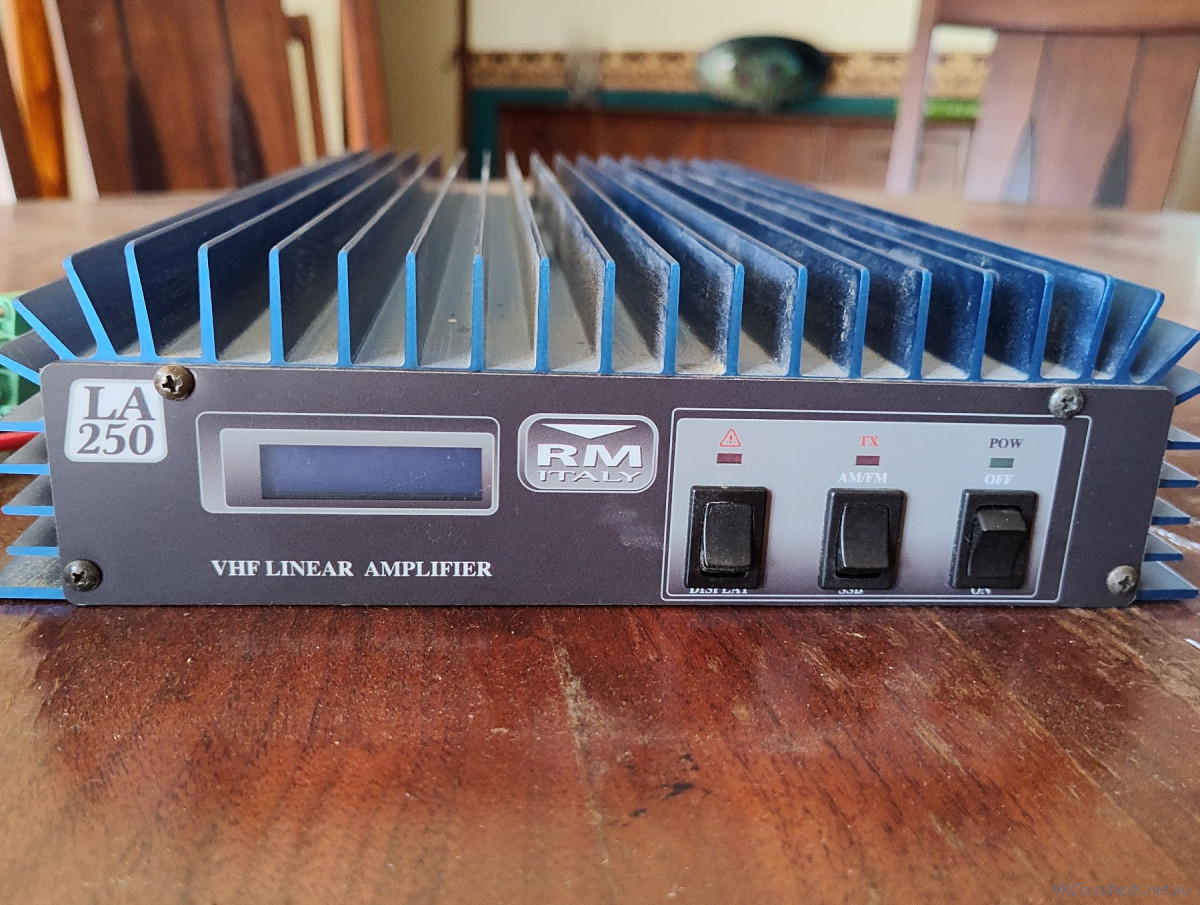

The RM Italy LA 250 V is a 200W solid-state linear amplifier designed for the 140–150 MHz (2m) VHF band, requiring 13.8 VDC and 1-20W input. It features an LCD display, automatic TX/RX switching, and protection against high SWR, over-temperature, and excessive input power.
Key Technical Specifications (RM LA250/V):
RRP $1499.00
The RM Italy LA 250 V is a 200W solid-state linear amplifier designed for the 140–150 MHz (2m) VHF band, requiring 13.8 VDC and 1-20W input. It features an LCD display, automatic TX/RX switching, and protection against high SWR, over-temperature, and excessive input power.
Key Technical Specifications (RM LA250/V):
- Frequency: 140 – 150 MHz
- Input Power: 1 – 15 W (20W max)
- Output Power: 200W-230W max (AM/FM/CW)
- Power Supply: 13VDC ± 1V
- Current Consumption: 40A
- Input/Output VSWR: 1.1-1.5:1 (Input), 2.8:1 max (Output)
- Dimensions/Weight: 420 x 240 x 90 mm (approx. 16.5 x 9.5 x 3.5 in); 4.25 kg
- Features: LCD display (power, SWR, temp), automatic RF sense keying
Operating Guidelines:
- Protection: Automatically blocks operation if the heatsink reaches 56°C.
- Best Practice: Operate below maximum saturation for better signal quality and cooler, more reliable performance.
- Connector: UHF female (SO-239).
Accessories Included
Power Leads
Condition of Item
As New
Payments Options
-
Paypal
-
Direct Deposit
-
Cheque
-
Cash
Postage - Freight
Negotiable
-
