$ 4,950.00
Posted
1 day ago
Description

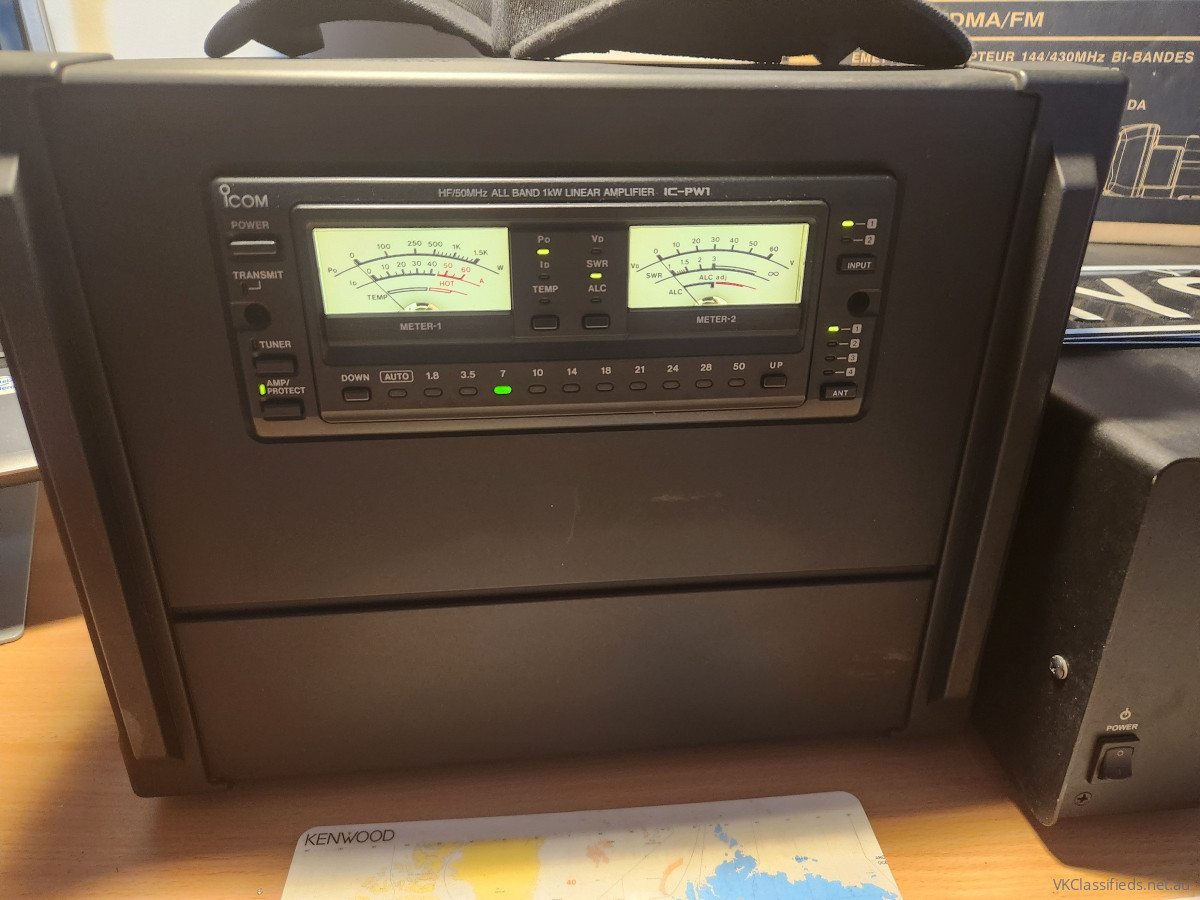

ICOM IC-PW1 1KW HF/6m Amplifier
LATEST VERSION vs earlier versions that when turned off lose antenna connection and antenna switching. Older models can add the upgrade board available from Icom USA at around $500 plus labour to fit but this being such a late model, no need to do anything but plug in and play with zero hassles.
Unit is only being sold due to upgrading my Icom IC7610/IC-PW1 remote station to Icom IC7760/IC-PW2 recently.
This Amplifier has done very low amounts of hours as my usual daily worker is an IC7850 and the IC-PW1 was only used when I accessed from overseas or interstate when travelling, also out on the deck enjoying the view while working the world.
As an added bonus, I have a backup set of 8 replacement MRF150 outputs and they will be supplied with the Amplifier, IC-PW1 units are very rarely a unit that sees any issues however I have always kept spares as a just in case for a load of my radios and accessories. The amp will also come with all accessory cables to hook up to an Icom unit however the IC-PW1 can easily be used with any Transceiver with minimal setup.
Price $4950 plus freight
email brenton@posnav.com.au
Specifications
LATEST VERSION vs earlier versions that when turned off lose antenna connection and antenna switching. Older models can add the upgrade board available from Icom USA at around $500 plus labour to fit but this being such a late model, no need to do anything but plug in and play with zero hassles.
Unit is only being sold due to upgrading my Icom IC7610/IC-PW1 remote station to Icom IC7760/IC-PW2 recently.
This Amplifier has done very low amounts of hours as my usual daily worker is an IC7850 and the IC-PW1 was only used when I accessed from overseas or interstate when travelling, also out on the deck enjoying the view while working the world.
As an added bonus, I have a backup set of 8 replacement MRF150 outputs and they will be supplied with the Amplifier, IC-PW1 units are very rarely a unit that sees any issues however I have always kept spares as a just in case for a load of my radios and accessories. The amp will also come with all accessory cables to hook up to an Icom unit however the IC-PW1 can easily be used with any Transceiver with minimal setup.
Price $4950 plus freight
email brenton@posnav.com.au
Specifications
General
Frequency coverage (MHz) 1.800– 1.999 3.500– 3.999
7.000– 7.300 10.100– 10.150
14.000– 14.350 18.068– 18.168
21.000– 21.450 24.890– 24.990*
28.000– 29.700* 50.000– 54.000
* The U.S.A. version can only be used the antenna tuner on the 24–28 MHz bands.
Power supply requirements 180–264 V AC or 90–132 V AC
(single-phase; 50/60 Hz)
Current drain Less than 15 A (max. output at 200 V)
Less than 20 A (max. output at 100 V)
Usable temperature range –10°C to +40°C; +14°F to +104°F
Duty cycle Full duty
Input connector SO-239 × 2 (50 Ω)
Output connector SO-239 × 4 (50 Ω)
Linear Amplifier
Output power
CW, RTTY: 1 kW (180–264 V AC), 500 W (90–132 V AC)
SSB: 1 kW PEP (180–264 V AC), 500 W PEP(90–132 V AC)
Driving power Max. 100 W
Spurious emissions Less than –60 dB (HF bands)
Less than –70 dB (50 MHz)
Antenna Tuner
Output matching range (tuner switch ON)
16.7 Ω to 150 Ω (HF bands)
20.0 Ω to 125 Ω (50 MHz)
Auto tuning accuracy VSWR 1.5:1 or less
Min. required input power 60 W
Insertion loss Less than 1 dB (after tuning)
All stated specifications are subject to change without notice or obligation.
Supplied Accessories
Controller separation cable
ACC cables
Coaxial cable with PL-259 plugs
Accessories Included
Shown in pictures
Condition of Item
Excellent
Payments Options
-
Paypal
-
Direct Deposit
-
Cheque
-
Cash
Postage - Freight
Buyer Pays
Contact Details
Country
Australia
State/Region/Province
Victoria
City
Tangambalanga
Post Code
3691
